VisionWorks VWIC714-HDWL 7" HD Wireless Camera System for RVs & Horse Trailers - Equine Model

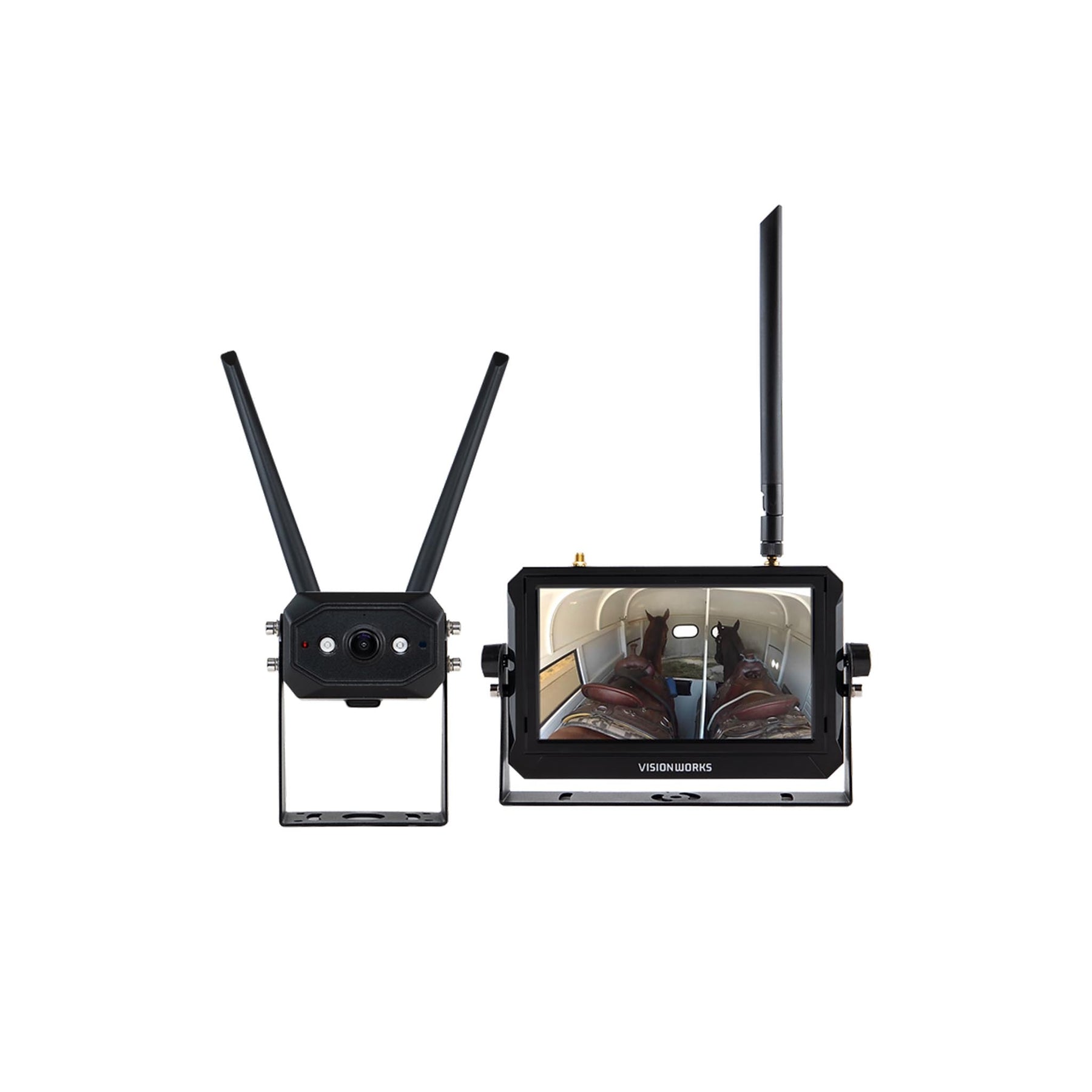

The VWIC714-HDWL is VisionWorks’ high-definition 7-inch wireless camera kit, built to bring exceptional visibility, safety, and recording capability to any RV, trailer, or commercial rig. With a crisp 1080p HD display and quad-view processor, you can view up to four cameras simultaneously or toggle between views easily.

Inside, the monitor houses an integrated DVR (micro-SD based) which continuously records your surroundings, whether you’re driving, reversing, or parked. The wireless camera uses digital transmission technology to maintain a reliable, low-latency feed, even at long ranges (up to ~1,000 ft line-of-sight in ideal conditions). The rugged camera unit is engineered for outdoor use with high ingress protection (IP69K rating in Gen2 models) to handle harsh weather and environments. Night vision extends your visibility after dark (rated out to ~35 ft in full darkness in many Gen2 variants).

Versatile mounting options (suction cup, cup-holder, U-bracket) make it simple to install the monitor in your cockpit, dashboard, or windshield. For installations on RVs pre-wired with Furrion or similar mounts, the included adapter bracket will support plug-and-play setup.

Whether backing into spots, driving long hauls, or needing a 24/7 surveillance setup, the VWIC714-HDWL offers comprehensive visual monitoring in one elegant package.

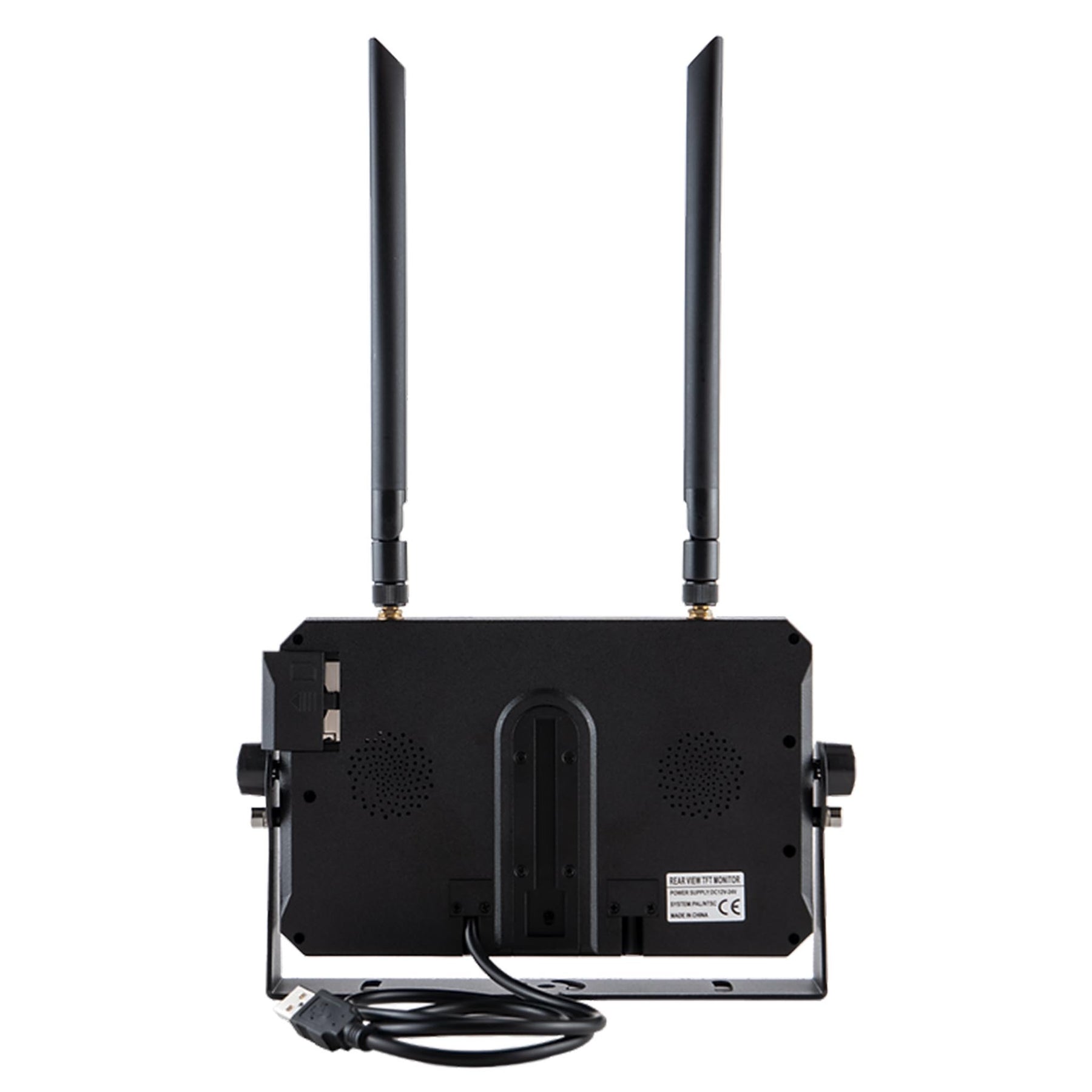

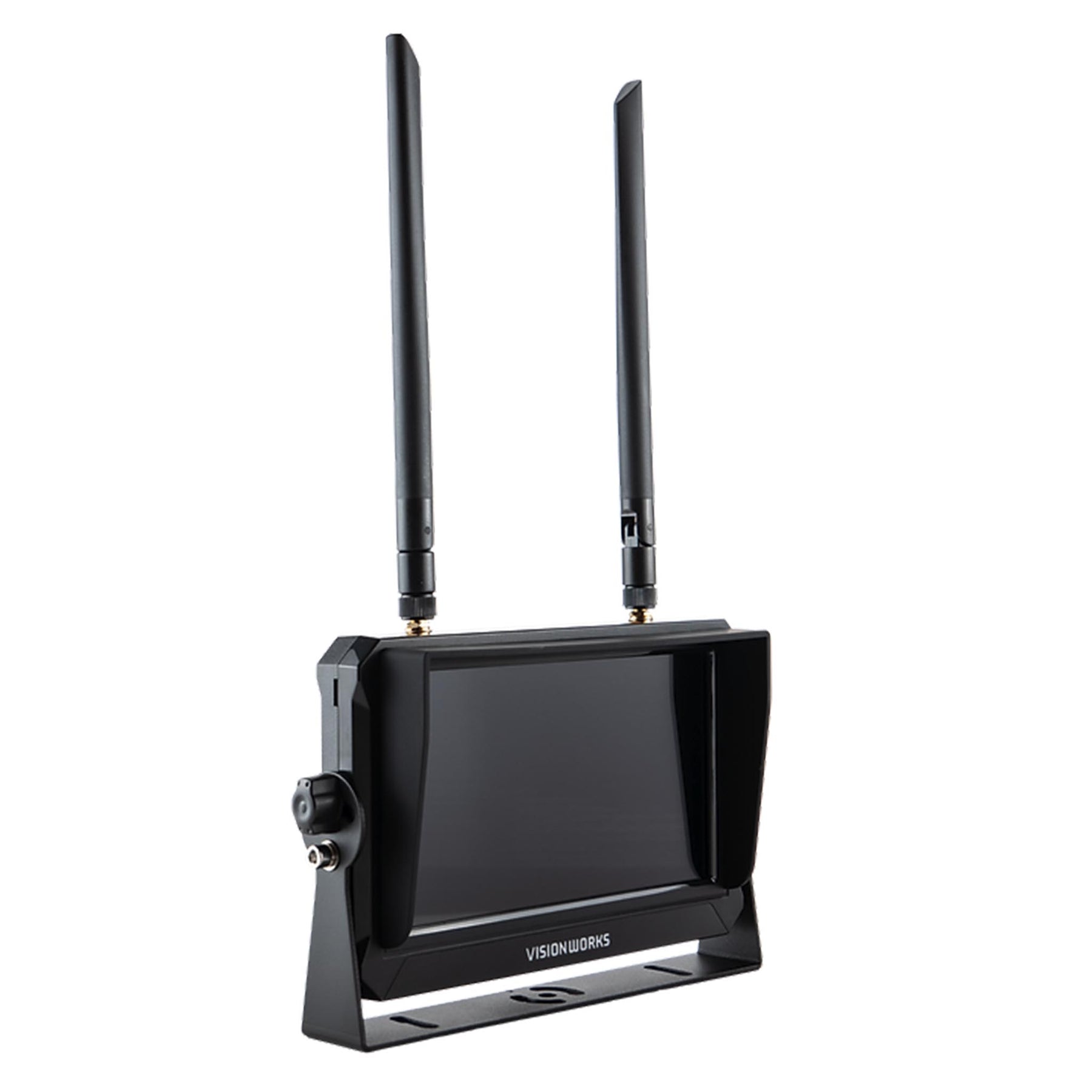

'- Monitor: 7" LCD, Full HD (1080p) resolution, touchscreen interface

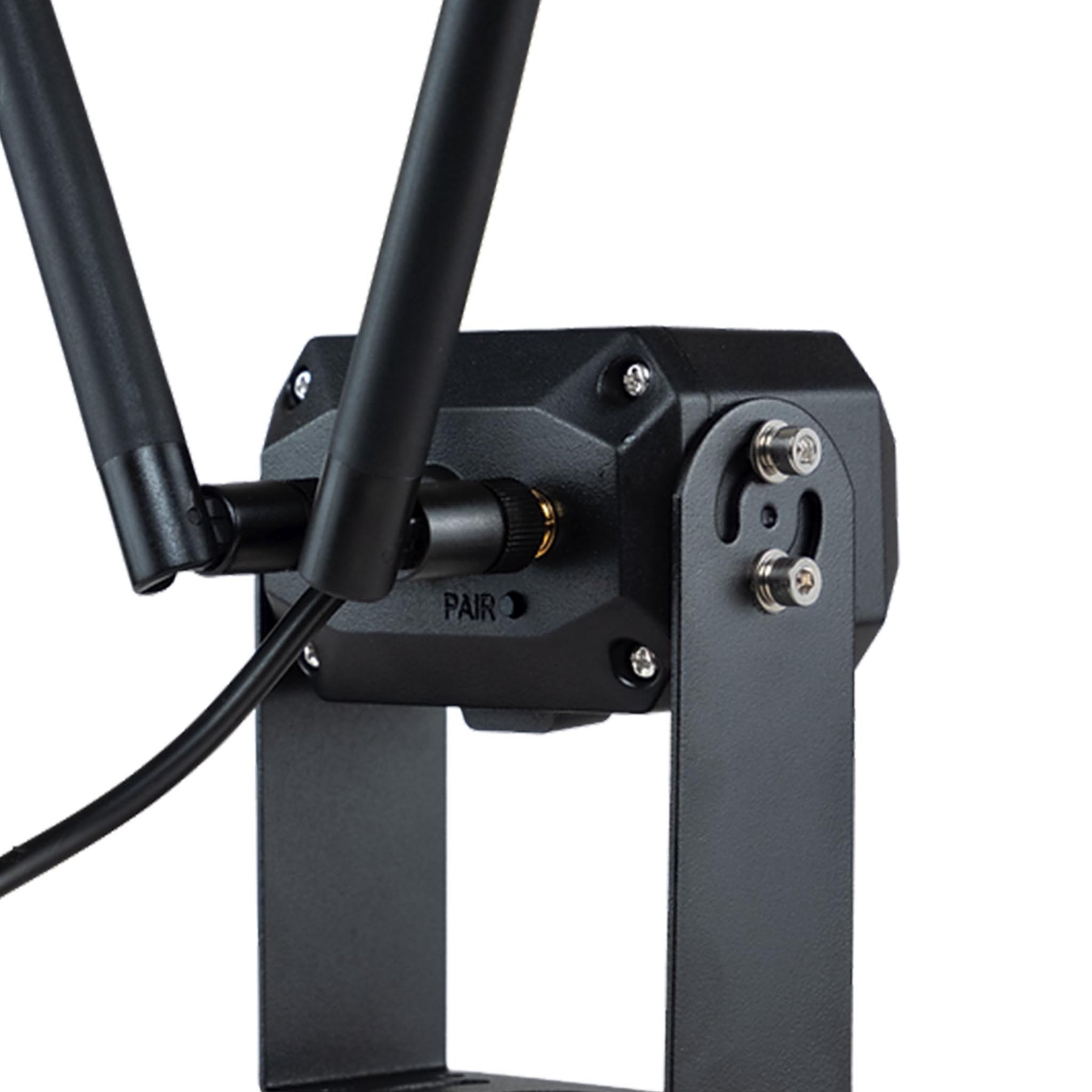

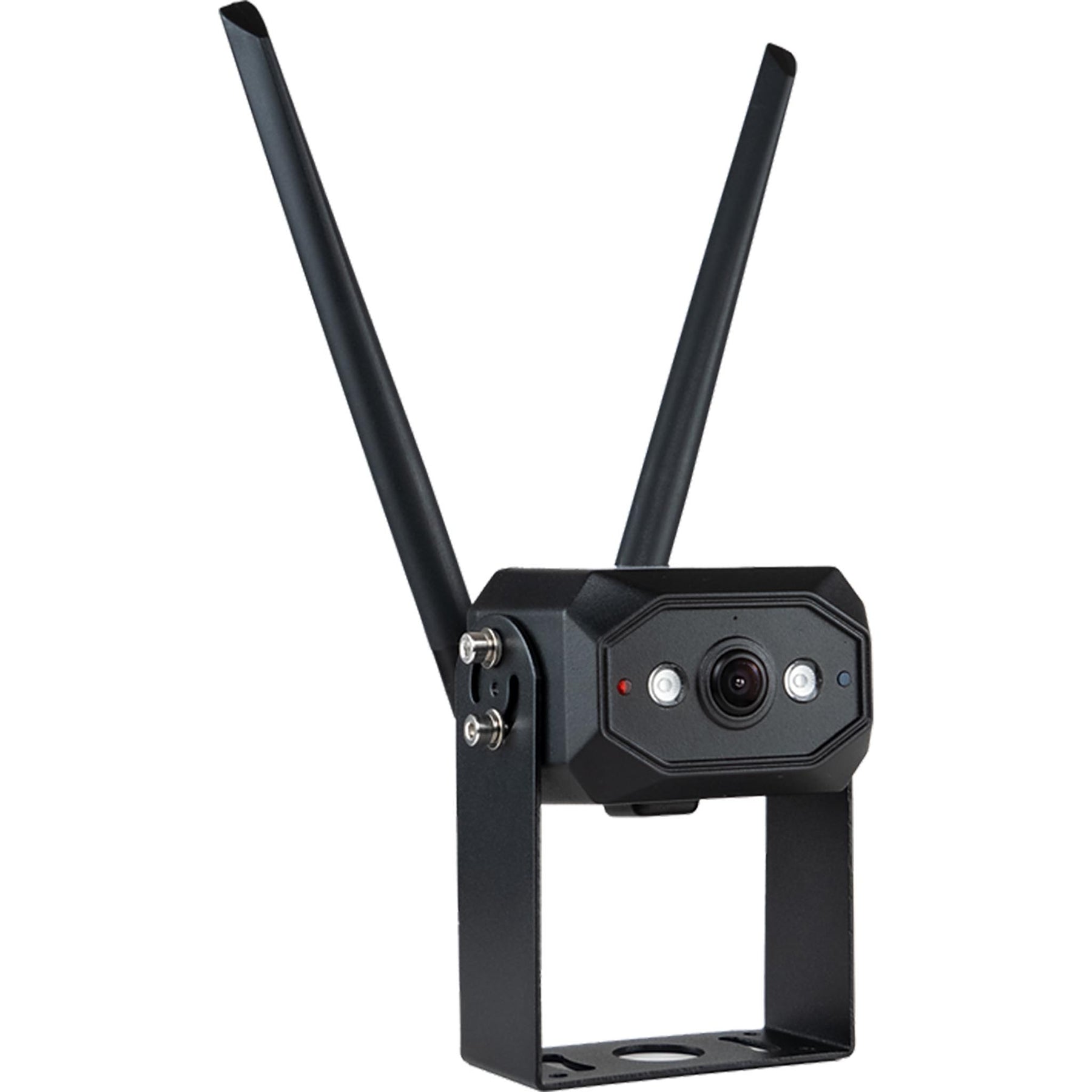

- Camera: 1080p HD wireless camera, IP69K ingress rating (for water, dust, pressure wash protection)
- Night Vision: IR LEDs with visibility up to ~35 ft in complete darkness (typical)
- Recording: Built-in DVR, accepts micro-SD (up to 256 GB, SD card not included)
Visionworks Cameras
- Wireless Range: ~1,000 ft line-of-sight (digital wireless link)
Visionworks Cameras
- Camera inputs: Supports up to 4 cameras (quad-view and toggle modes)
Visionworks Cameras
- Latency / Delay: Designed for minimal delay (≦ 0.11 s typical in Gen2)
TechnoRV
- Viewing Angle: ~120° (typical lens spec in Gen2 models)
TechnoRV
- Power: 12–24V input to monitor; camera powered via 12V barrel connector / wiring harness
- Operating Temperature: from ~–20 °C upward (varies by component)

'- 1 × 7” HD touchscreen monitor & mounting hardware
- 1 × 1080p IP69K wireless HD camera
- 1 × RV pre-wire adapter & bracket (for Furrion-style mounts)
- 1 × power adapter / cigarette lighter 12V cable
- 1 × AC wall adapter for monitor (depending on variant)

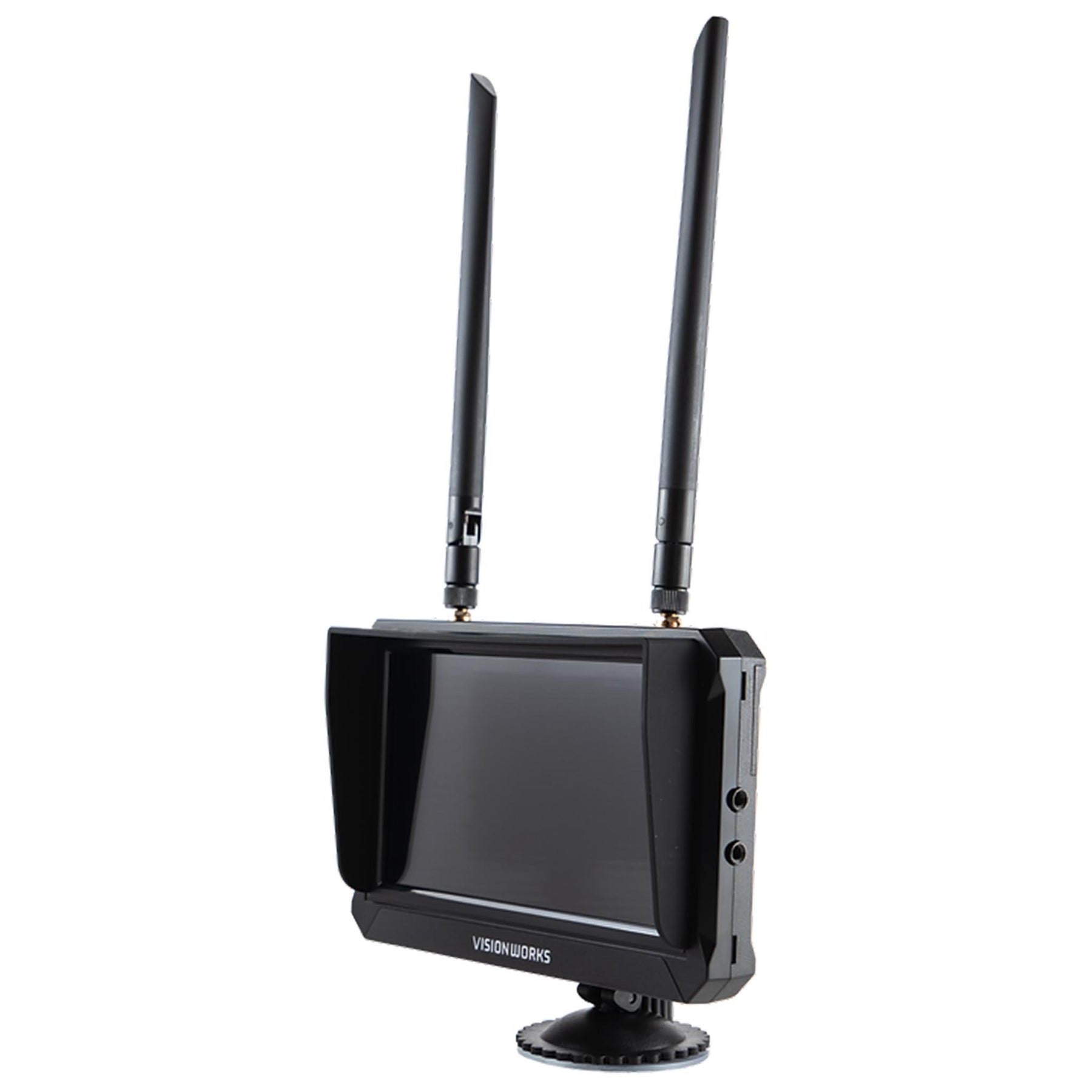

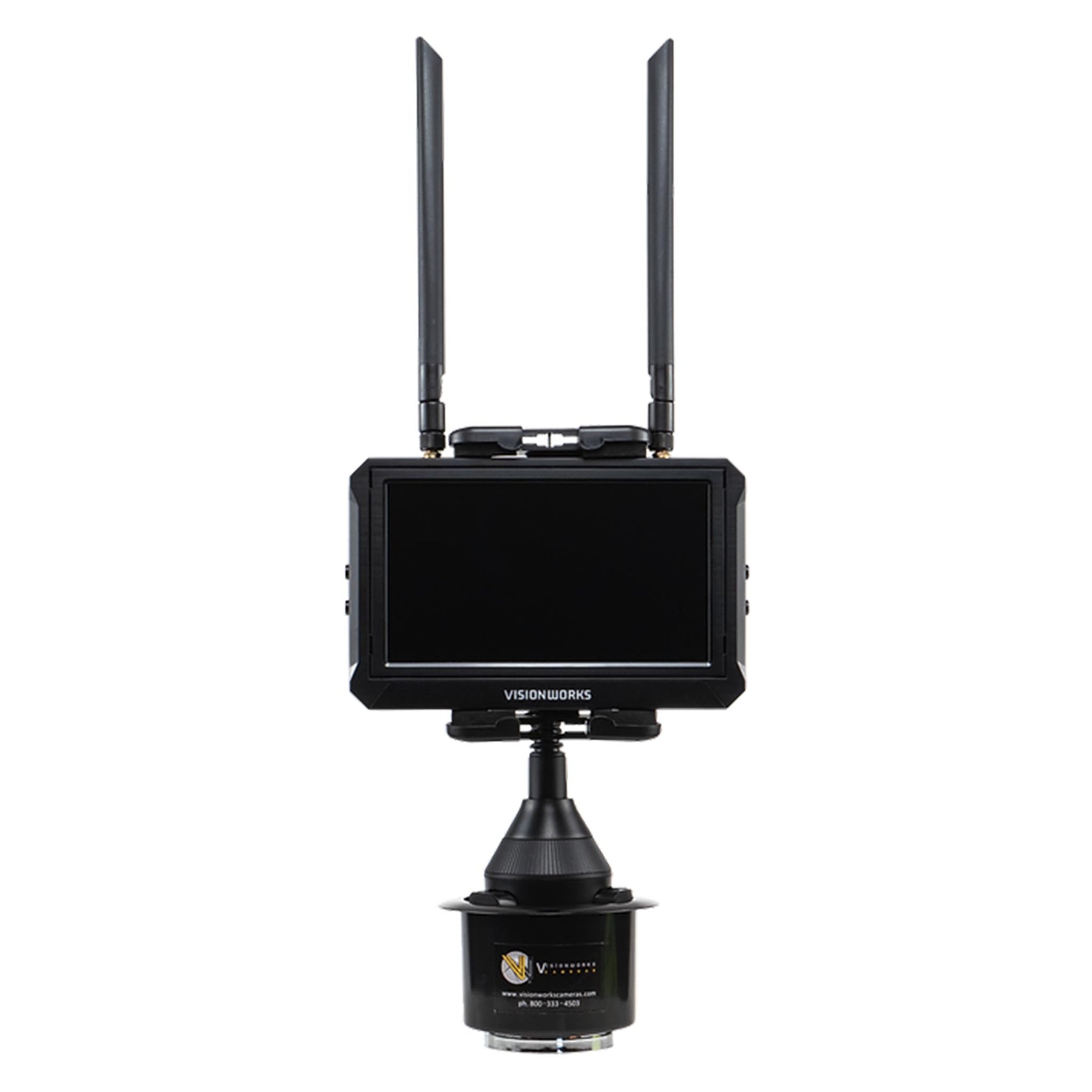

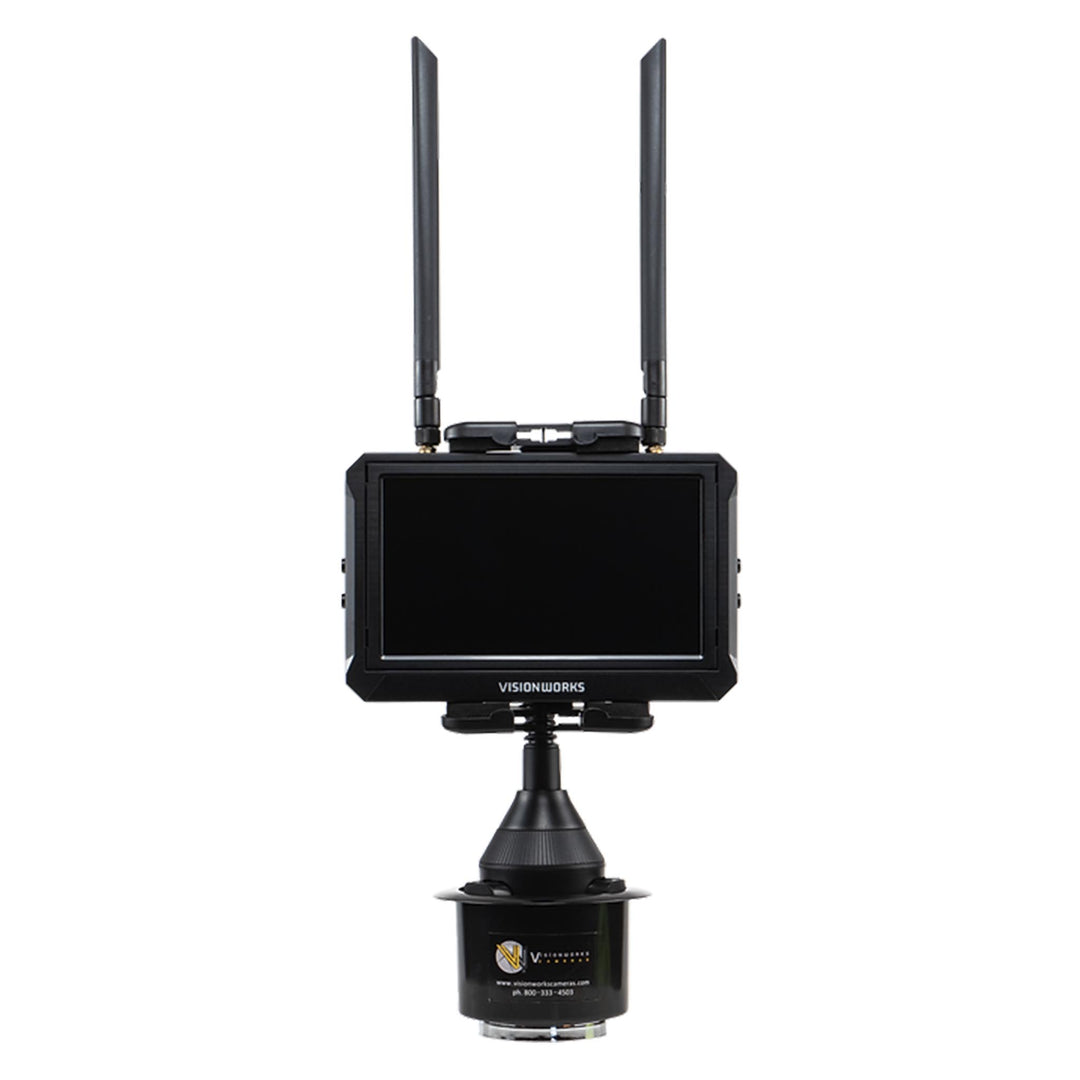

- Monitor mounts: suction cup, cup-holder mount, U-bracket
- Micro-SD slot (SD card not included)
- User manual, cable, warranty documentation
