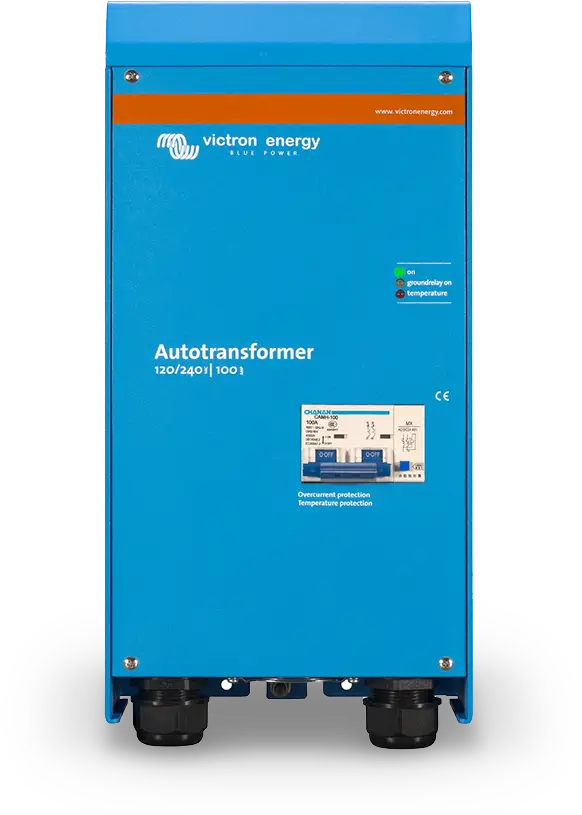

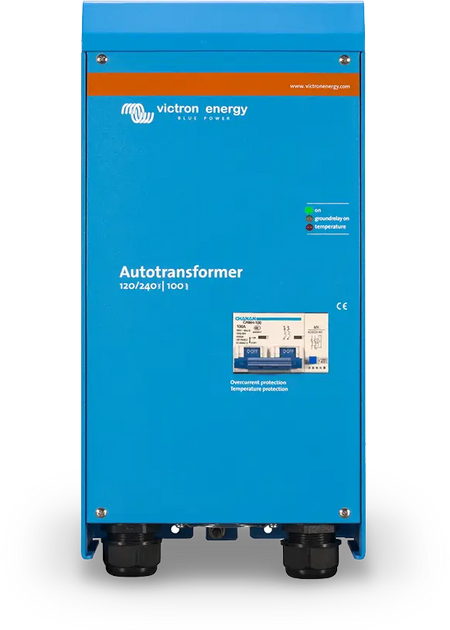

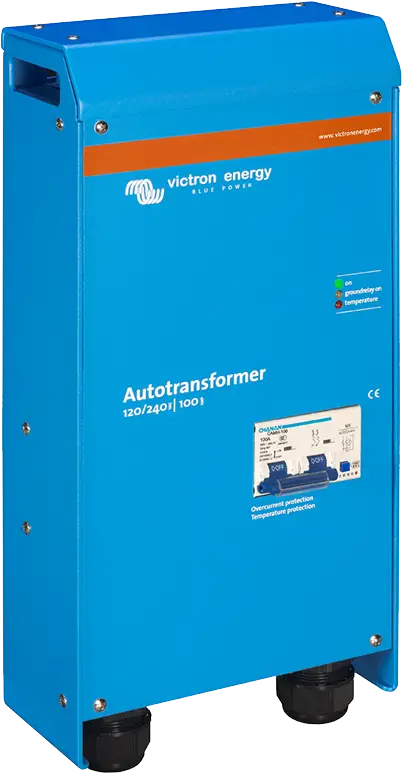

Victron Energy Autotransformer

Autotransformer – Maximize Power in RV and Off-Grid Split-Phase Systems

If you're running a 120/240V split-phase system in an RV or off-grid setup, you may not be using your full available power. This autotransformer is designed to balance split-phase loads, stabilize your system, and unlock full usable capacity— especially when running real-world 120V appliances that are rarely evenly distributed.

The Real Issue in RV and Off-Grid Power Systems

In a typical 30A split-phase system powered by a generator, inverter, or shore power source, 120V loads such as air conditioners, microwaves, and washers rarely stay balanced across both legs.

When one leg becomes overloaded before the other, you hit system limits early even though unused capacity still remains. For example, one leg may be drawing 30A while the other is only drawing 10A. In that scenario, you are only using about 67% of your system’s total available capacity.

What This Autotransformer Does

This unit helps balance the load between both legs, allowing your split-phase system to operate more efficiently under real-world conditions.

• Absorbs imbalance between legs
• Creates a stable neutral point
• Keeps input current balanced even when connected loads are uneven

The result is better use of available power, fewer overload issues, and more stable system performance.

Real-World Performance Gain

Without load balancing, a 30A split-phase system may only deliver about 4.8 kVA of usable power in practical use. With an autotransformer, that same system can deliver up to 7.2 kVA, allowing you to get significantly more usable output from the power source you already have.

Built for RV and Mobile Power Systems

This autotransformer is well suited for:

• RVs running multiple 120V appliances
• Off-grid solar systems with inverter setups
• Generator-based power systems
• Mobile or remote installations where load balance is unpredictable

Integrated Grounding Relay

The built-in grounding relay is an important feature for inverter-based systems. It helps manage neutral-to-ground bonding during inverter operation and supports proper operation of GFCI-protected circuits.

This makes the unit a strong fit for inverter/chargers such as Multi and Quattro systems.

Thermal Protection

For added safety, the autotransformer includes built-in temperature protection.

• Disconnects in the event of overheating
• Manual reset for controlled restart
• Helps protect both the transformer and connected equipment

Better Than Stacking Inverters

Many split-phase systems rely on stacking two 120V inverters. While functional, that approach limits how power can be used across each leg.

With stacked inverters, unused capacity on one leg cannot be transferred to the other. With a properly configured autotransformer, power can be distributed more effectively based on actual demand, giving you greater usable output and improved flexibility when loads are uneven.

Why It Matters for RV Use

RV power demand is rarely balanced. One leg may be feeding an air conditioner while the other is supporting kitchen appliances, chargers, or intermittent accessory loads. This autotransformer is designed to handle that reality by helping your system use power more effectively without wasting available capacity.

Summary

If you're running a split-phase system in an RV or off-grid environment, this autotransformer is a practical upgrade that improves overall system performance.

• Increases usable power
• Balances uneven loads
• Reduces overload issues
• Improves system stability

It is a straightforward solution to one of the most common limitations in real-world RV and mobile power systems.
