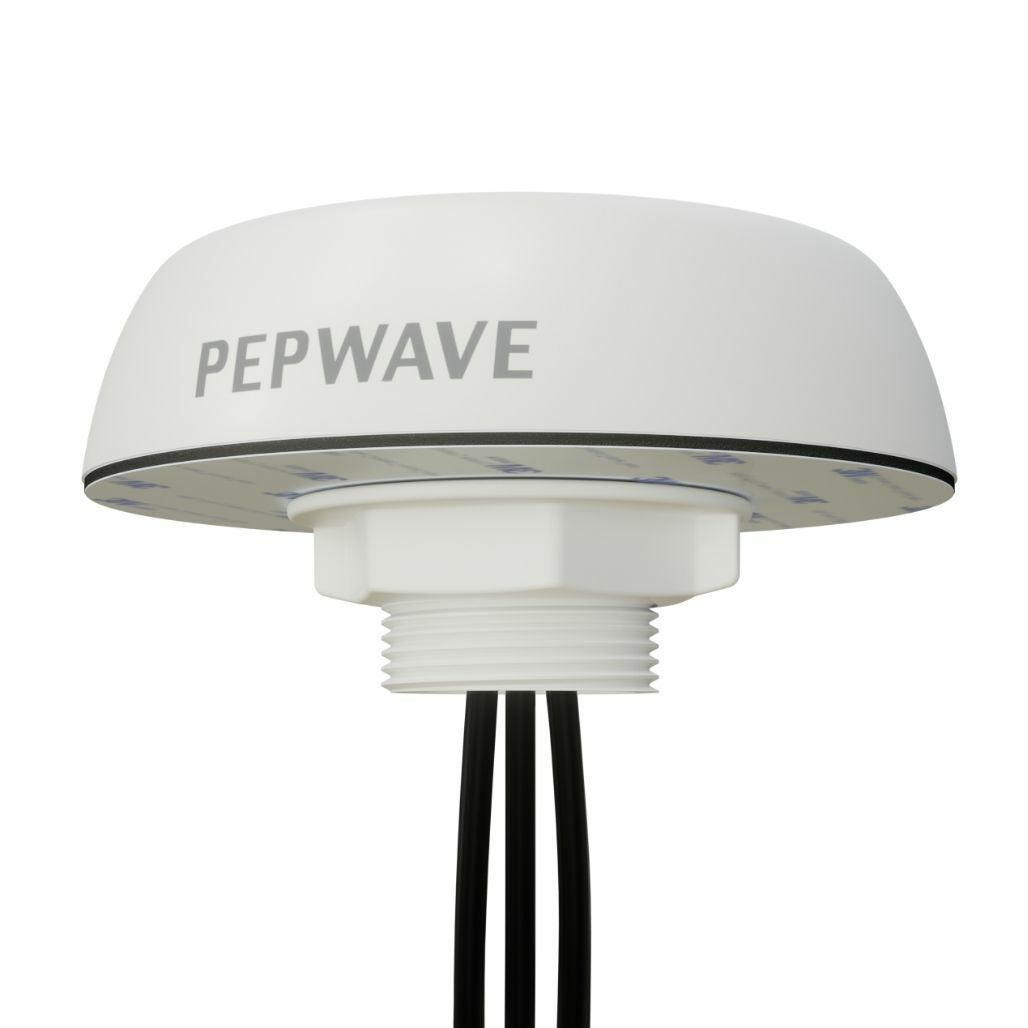

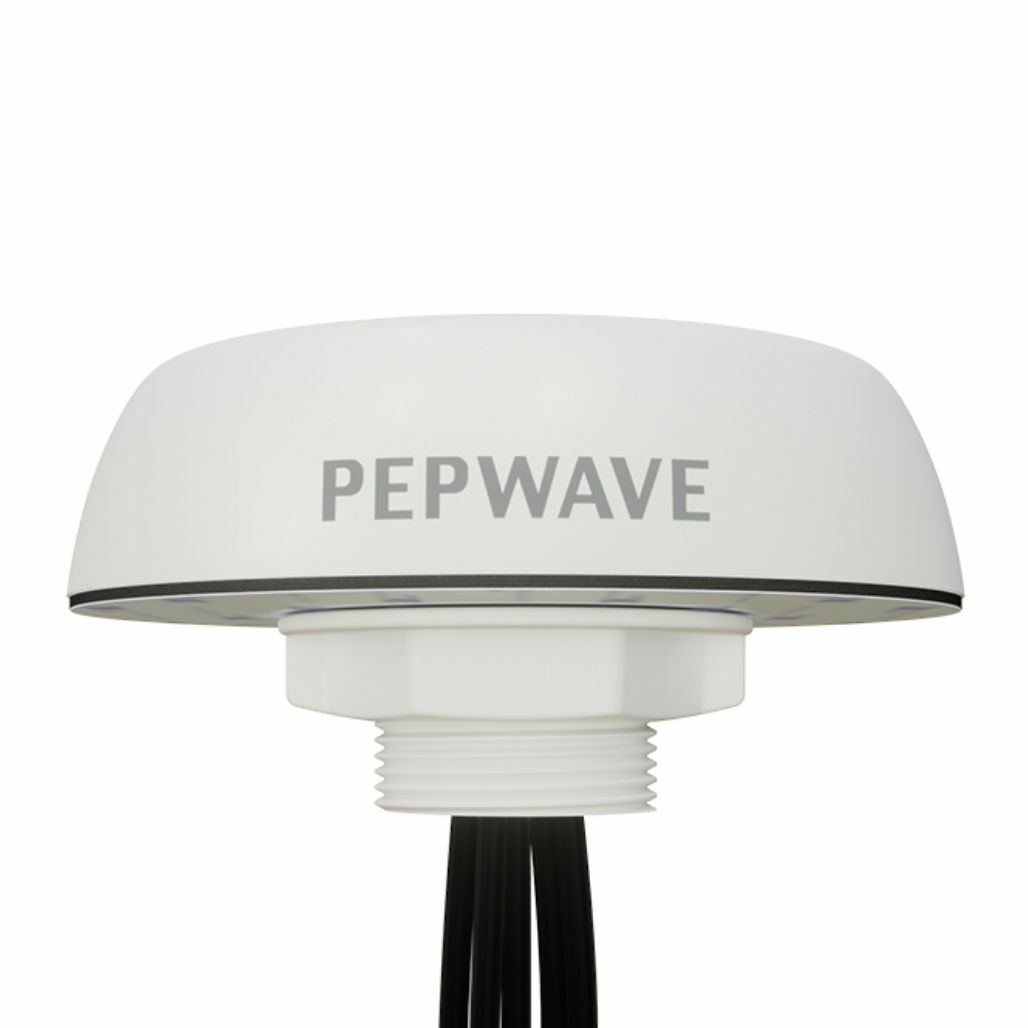

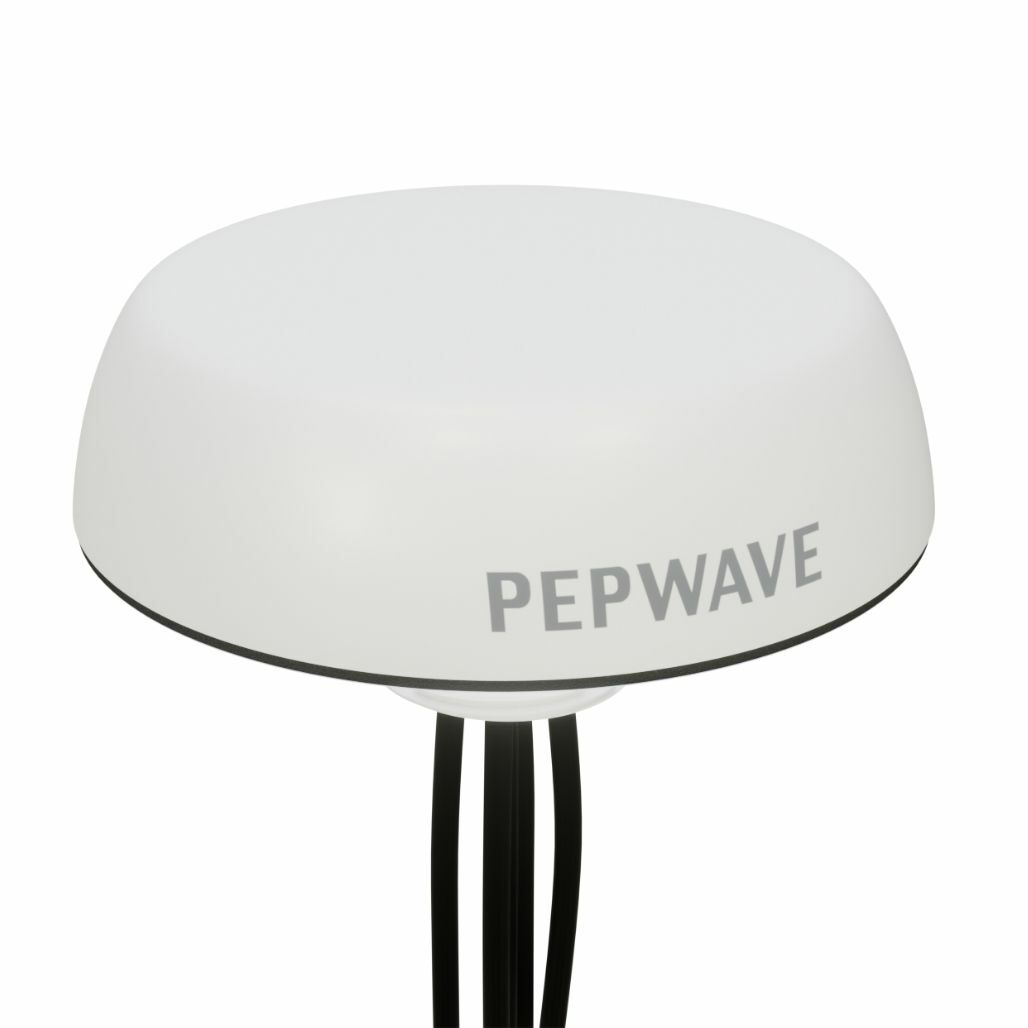

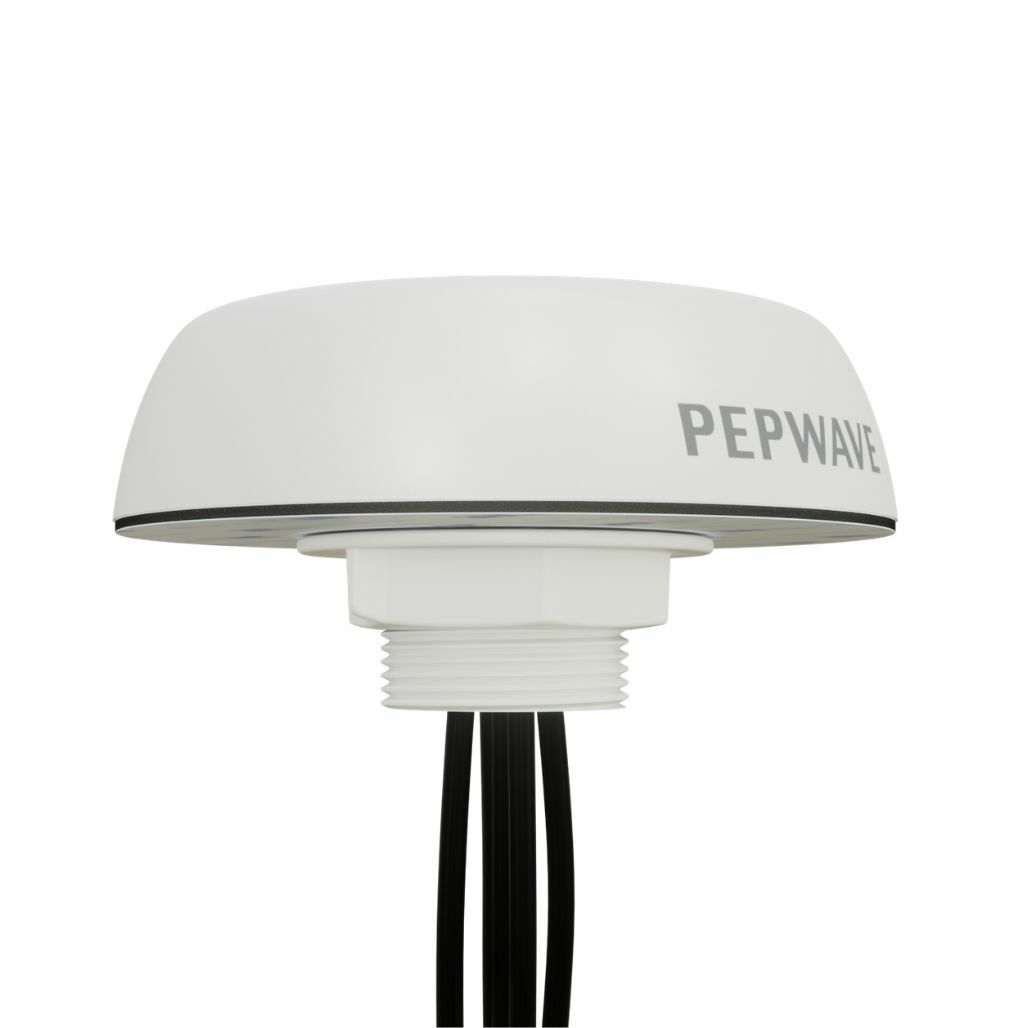

The PepWave Mobility 22G is a 5-in-1 antenna built for mobile applications. It supports 2x2 cellular MIMO for high bandwidth and solid reliability, dual-band (2.4GHz & 5GHz) Wi-Fi and GPS. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.
The Mobility 22G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options.
- 5-in-1 cellular and W-Fi antenna system with GPS receiver
- 2x2 Cellular frequencies: 600-6000 MHz
- 2x2 Wi-Fi frequencies: 2400-2500 MHz & 5000-6000 MHz
- Durable and UV-stable housing
- IP67 rated
- Model: ANT-MB-22G-S-W-6
Frequency and gain:
Cable 1-2 (cellular):
- 1.2dBi: 617-960MHz
- 5.7dBi: 1710-2700MHz
- 5.6dBi: 3400-4200MHz
- 6.0dBi: 5000-6000MHz
Cable 3-4 (WiFi):
- 4.8dBi: 2400-2500MHz
- 7.4dBi: 5000-6000MHz
Cable 5 (GPS):
- 28 ± 3 dBi
- Cable 1-2 (cellular):
- Impedance: 50 Ohms

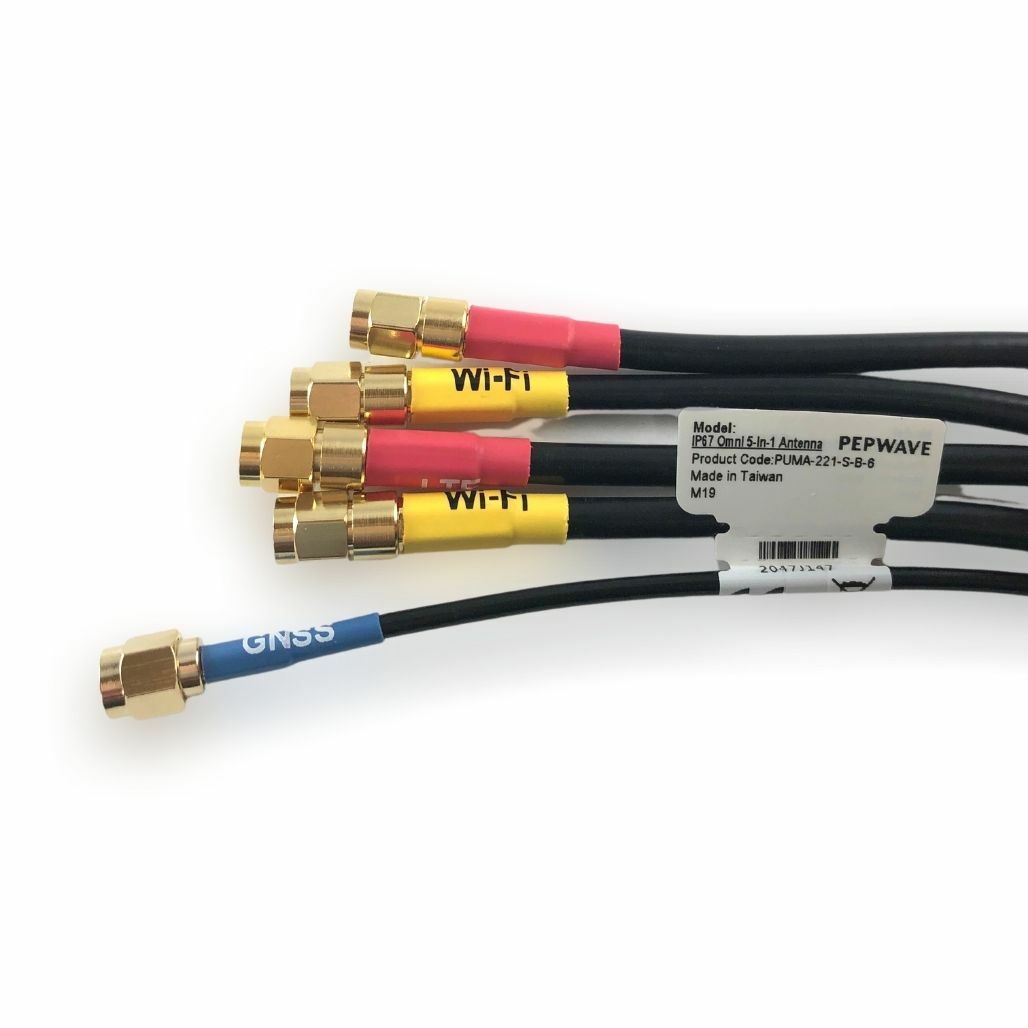

Cable and connectors:
- Cellular: 2 x 2m (6.5') CFD200 (LMR200-equivalent) with SMA/Male
- WiFi: 2 x 2m (6.5') CFD200 (LMR200-equivalent) with RP-SMA/Male
- GPS: 1 x 2m (6.5') CFD200 (LMR200-equivalent) with SMA/Male

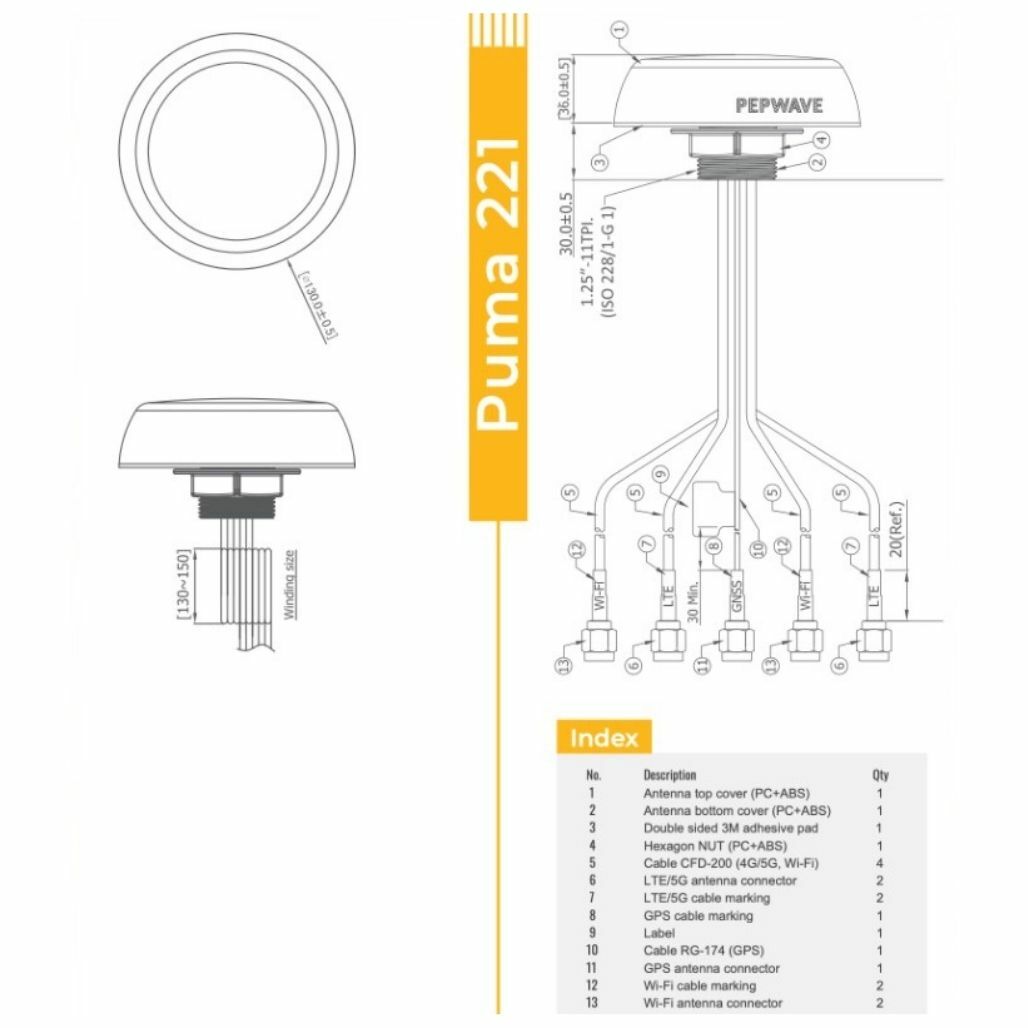

- Dimensions: 5.12” wide x 1.42” high (antenna only; cables not included in this measurement)
- Mounting type: Panel, wall, pole
- Mounting hole: 1 11/16" / 43mm
- Max panel thickness: 19/32" / 15mm
