VisionWorks HD Wireless Rearview Observation Camera System with 5, 7, or 10-inch Touchscreen Monitor - Gen 2

The VisionWorks HD Wireless Rearview Observation Camera System – Gen 2 is the ultimate safety upgrade for your RV, tow vehicle, or trailer. Delivering crystal-clear 1080P HD video with long-range wireless transmission up to 1,000 feet line-of-sight, this system ensures stable, uninterrupted visibility wherever you travel.

With support for up to four wireless cameras, the system allows you to toggle between multiple angles or view them all at once on your choice of 5”, 7”, or 10” HD touchscreen monitor. The built-in DVR function with SD card slot (up to 256GB, card not included) lets you record trips for added peace of mind.

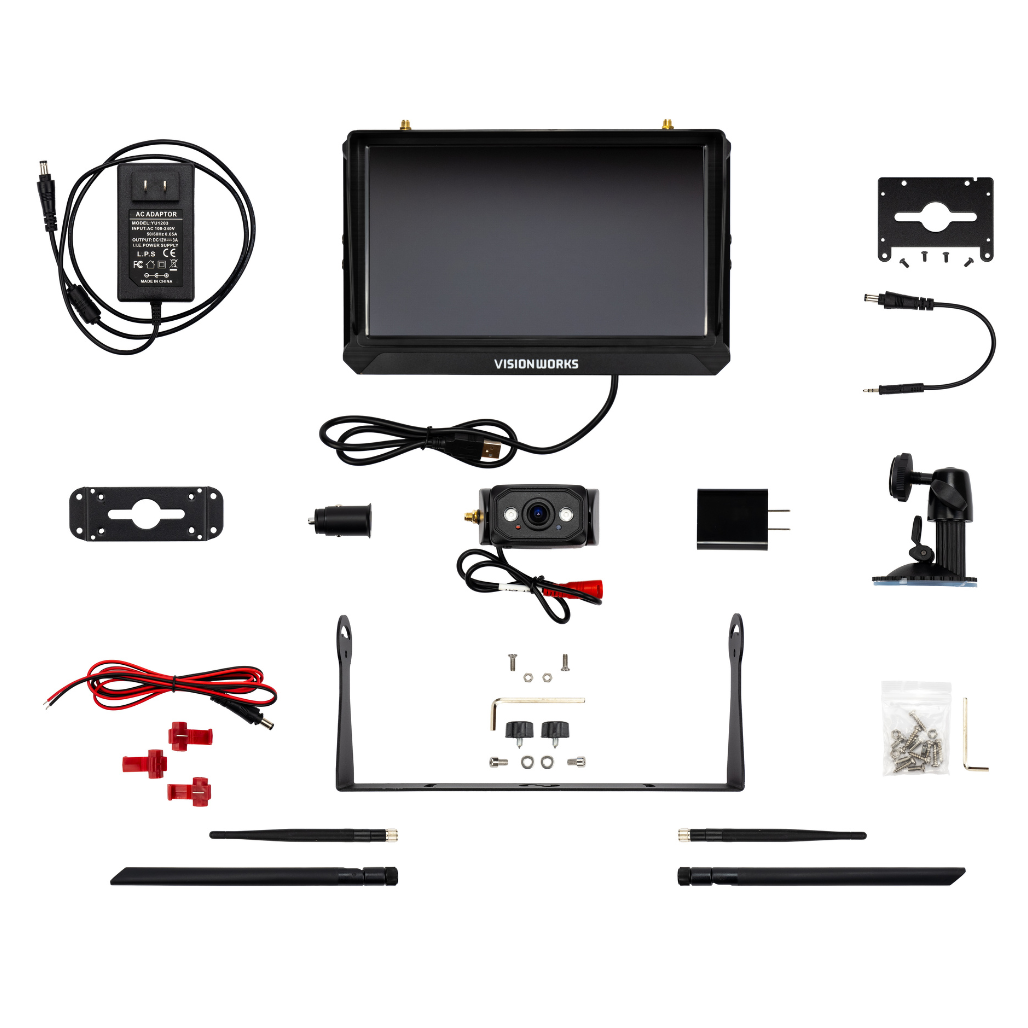

Installation is quick and hassle-free thanks to the RV pre-wire adapter and bracket. The 5" and 7" kits come with both suction cup and cup holder mounts. The 10" kit comes with a suction mount and a permanent screw down mount for flexible monitor placement. Powered via USB or the included 12V adapter, the VisionWorks system fits seamlessly into your setup without complicated wiring.

Built tough for RV life, the VisionWorks Gen 2 system combines advanced technology with practical convenience, giving you safer travels, easier maneuvering, and full confidence on the road.

CRYSTAL-CLEAR 1080P HD VIDEO – Get superior clarity and confidence when backing up, changing lanes, or monitoring behind your RV.

LONG-RANGE WIRELESS SIGNAL – Stable transmission up to 1,000 ft. line-of-sight for uninterrupted visibility on the road or at the campsite.

MULTI-CAMERA SUPPORT – Connect and monitor up to 4 cameras at once with split-screen or single-view options on a 5”, 7”, or 10” touchscreen.

BUILT-IN DVR RECORDING – Record and store your drives with an integrated DVR and SD card slot (supports up to 256GB, card not included).

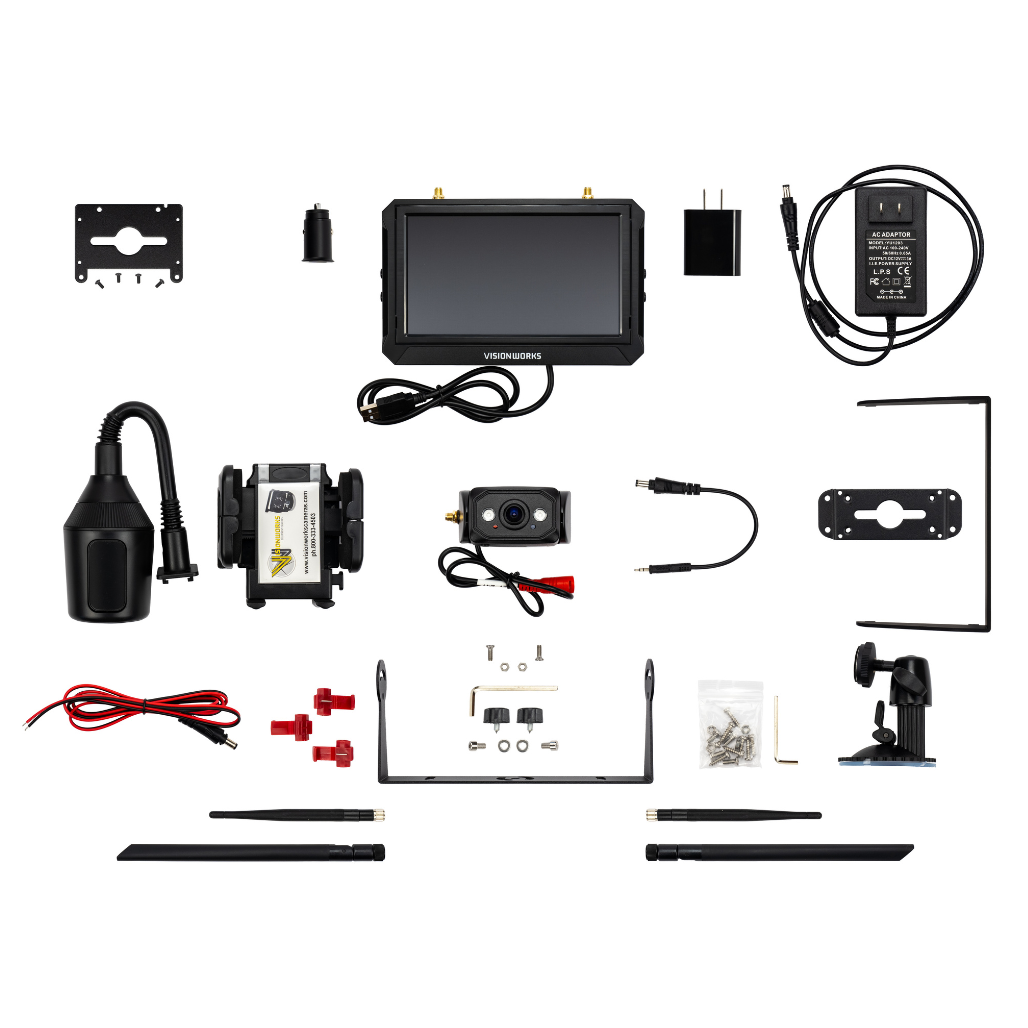

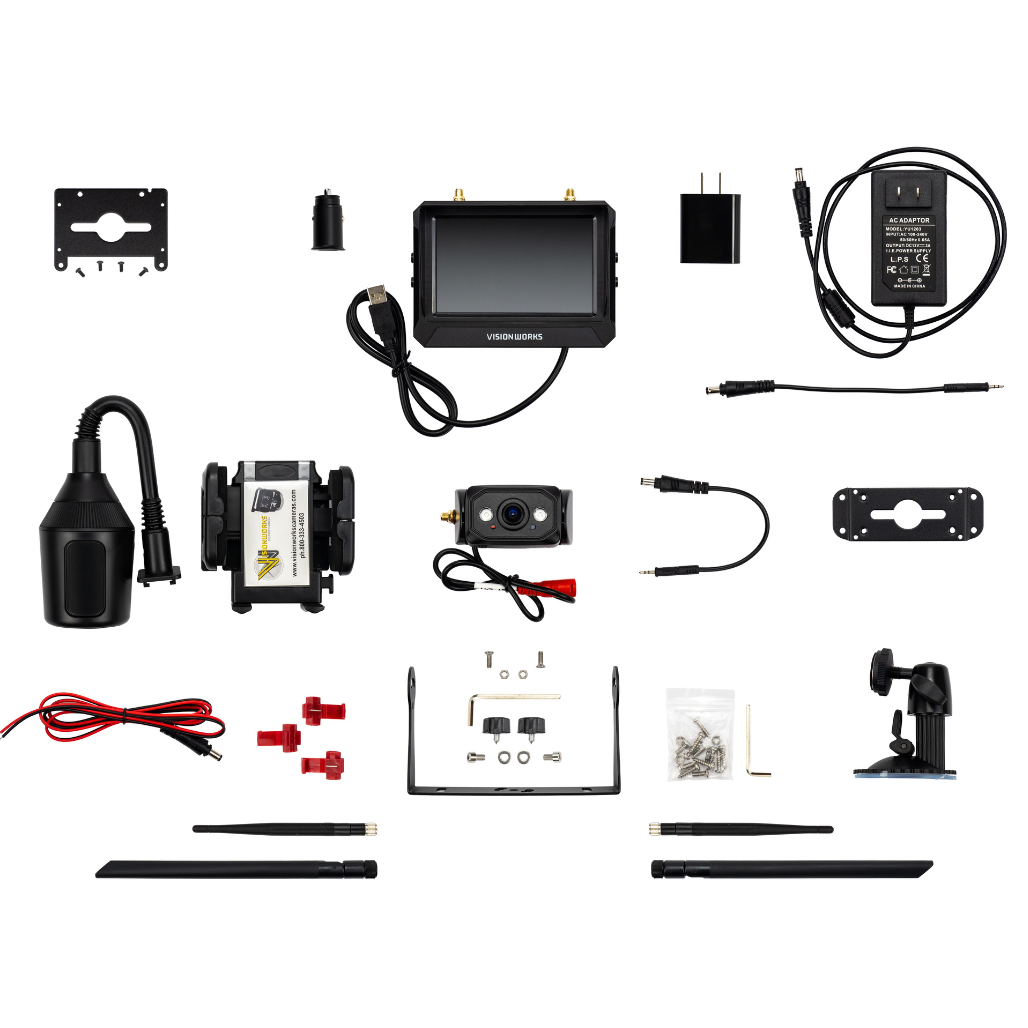

FAST & EASY INSTALLATION – Includes RV pre-wire adapter, bracket, suction cup mount, cup holder mount (5” & 7”), USB power cable, and 12V adapter for a hassle-free setup.

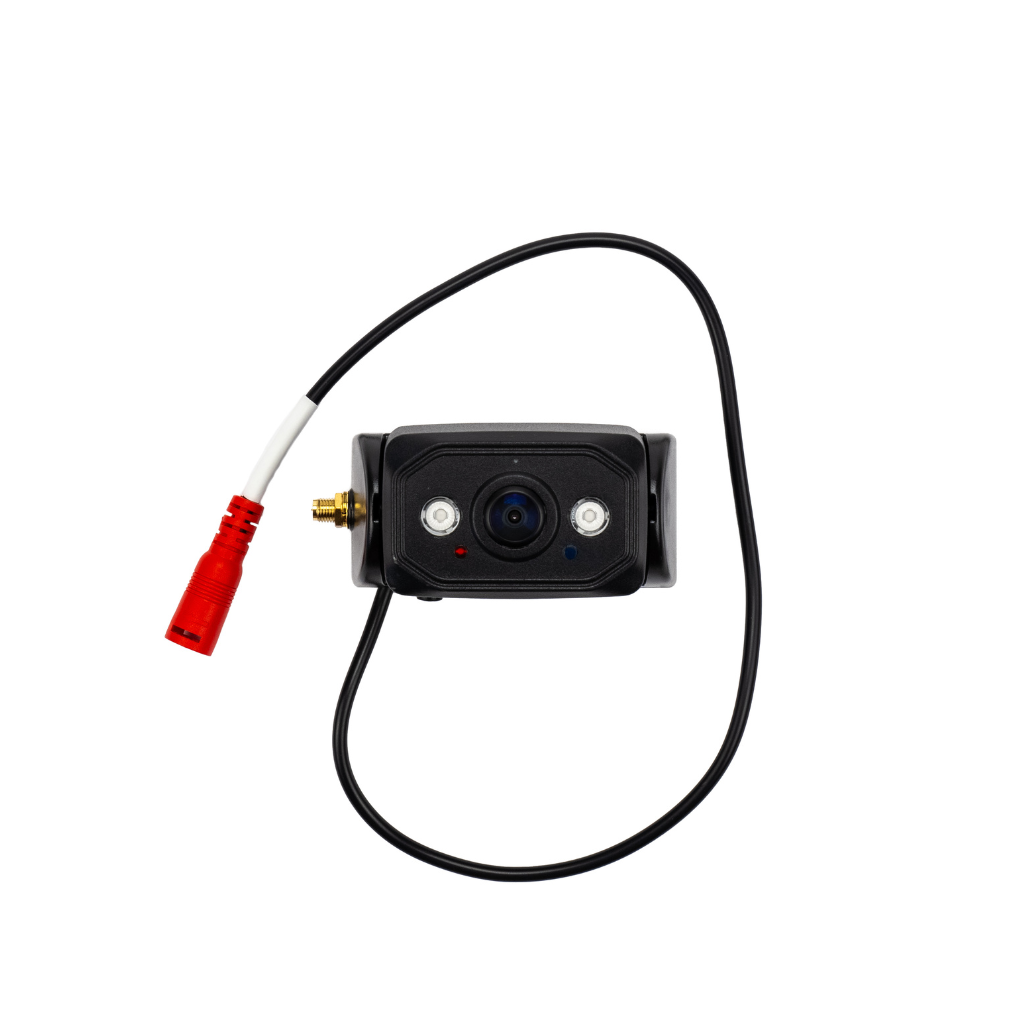

CAMERA SPECIFICATIONS
* Resolution: 1080p HD Resolution
* Wireless Range: 1,000 ft. with a clear line of sight
* Lens: 2.1 mm
* Viewing angle: 120 degree
* Durability rating: IP69k
* Frame rate: 60 FPS
* Night vision: Yes, 2 XL IR LEDs
* Night vision Visibility: 35 feet
* Lowest operating temperature: -20 C or -4 F
* Input type: Female barrel jack plug for hard-wiring cable.
* Delay: 0.11 seconds

DISPLAY SPECIFICATIONS
* TV System: NTSC/PAL
* HD picture: 1080p resolution
* Weatherproof: No
* Aspect Ratio: 16:9
* Brightness: 350 cd/m2
* Video inputs: 4
* Audio inputs: 4
* Built-in speaker: Yes
* Power Supply: 12-24V
* Viewing options: 1-4 camera views on 1 monitor with ability to toggle between views
* Touchscreen: Yes
* Features: Adjustable brightness, color, and contrast
* Recording capabilities: Built-in DVR compatible with up to 256GB SD card (not included)

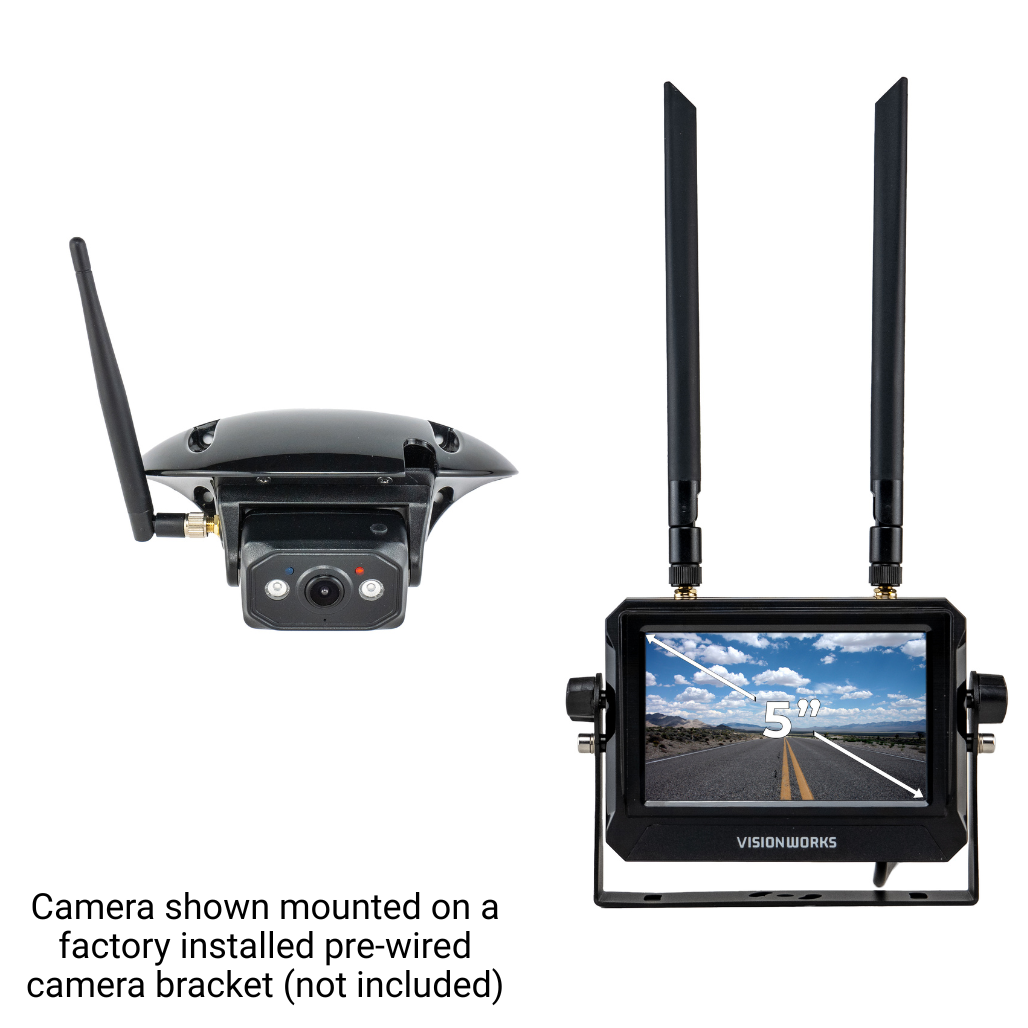

5-INCH MONITOR
* Monitor body dimensions (without antenna): 5” ½ L x 4” H x 1” D (1.8" D w/Visor)
* Screen diagonal measurement: 5.00"

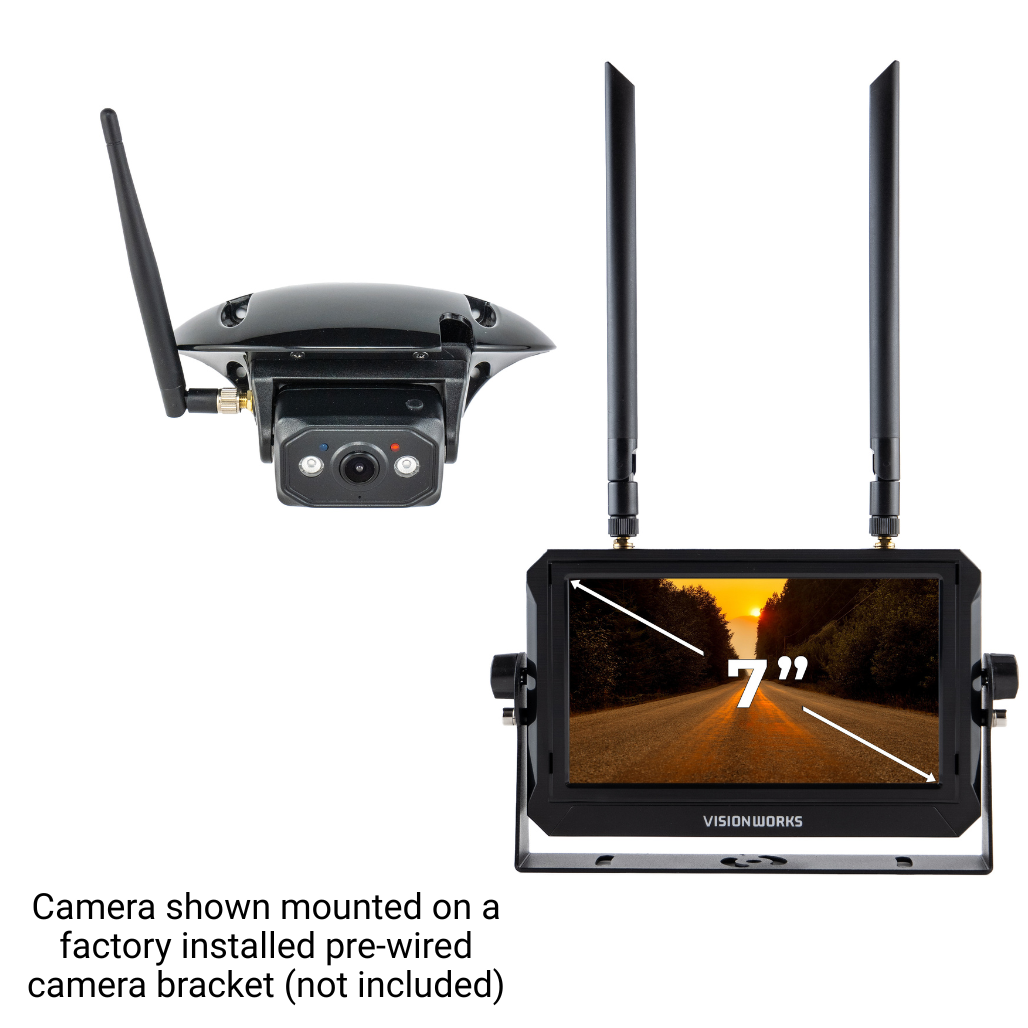

7-INCH MONITOR
* Monitor body dimensions (without antenna): 7 ½ L x 4 ¾ H x 1” D (1.8" D w/Visor)
* Screen diagonal measurement: 7.00"

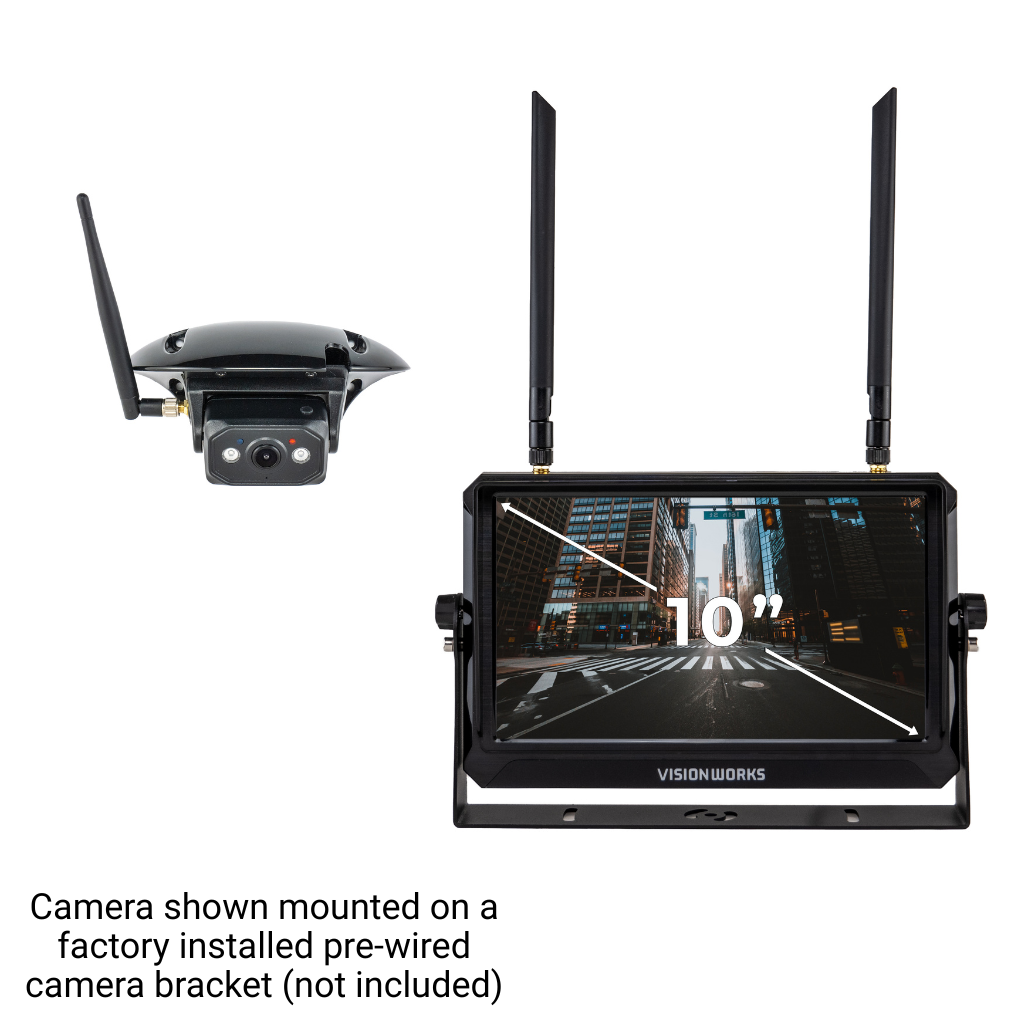

10-INCH MONITOR
* Monitor body dimensions (without antenna): 10 ¼ L x 6 7/8 H x 1” D (1.8" D w/Visor)
* Screen diagonal measurement: 10.00"

* Crisp 1080P HD Camera with Built-in DVR – Record your drive or use it as a security system when parked (SD card not included).
* Upgraded Wireless Transmission – Enjoy a stable connection up to 1,000 feet in open line-of-sight conditions for uninterrupted video feeds.
* Superior Night Vision - Provides 35 feet of visibility using 2 XL IR LEDs
* Touchscreen Quad-Processor Monitor – Easily toggle between multiple camera views or monitor up to four cameras simultaneously for complete visibility.
* Monitor is powered via USB and includes a 12V cigarette-lighter style adapter as well.

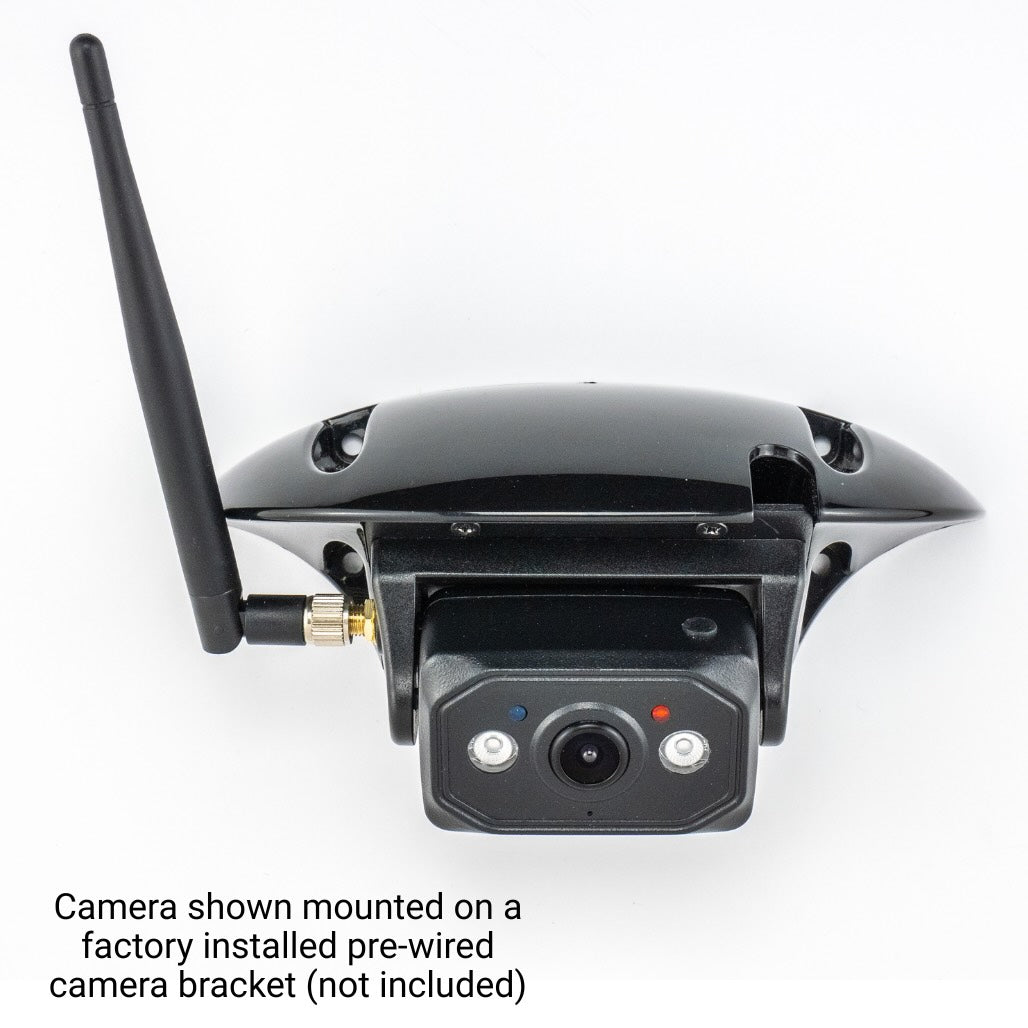

* Comes with an adapter and bracket to easily connect the camera to an RV pre-wired for a rear camera.
* Versatile Mounting Options – Choose between the included suction cup mount for windshield placement or the popular cup holder mount for a secure fit in your RV.
* Comes with a 3-year warranty
