SKU: PEPWAVE-MOBILITY-40G Barcode: 710859518006
(0)

Pepwave Mobility 40G Antenna - 5-in-1 MIMO Omnidirectional - White

Pepwave
Sale
In stock
$197.00
$197.00 $350.00

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Help your customers identify what payments are accepted by your store.

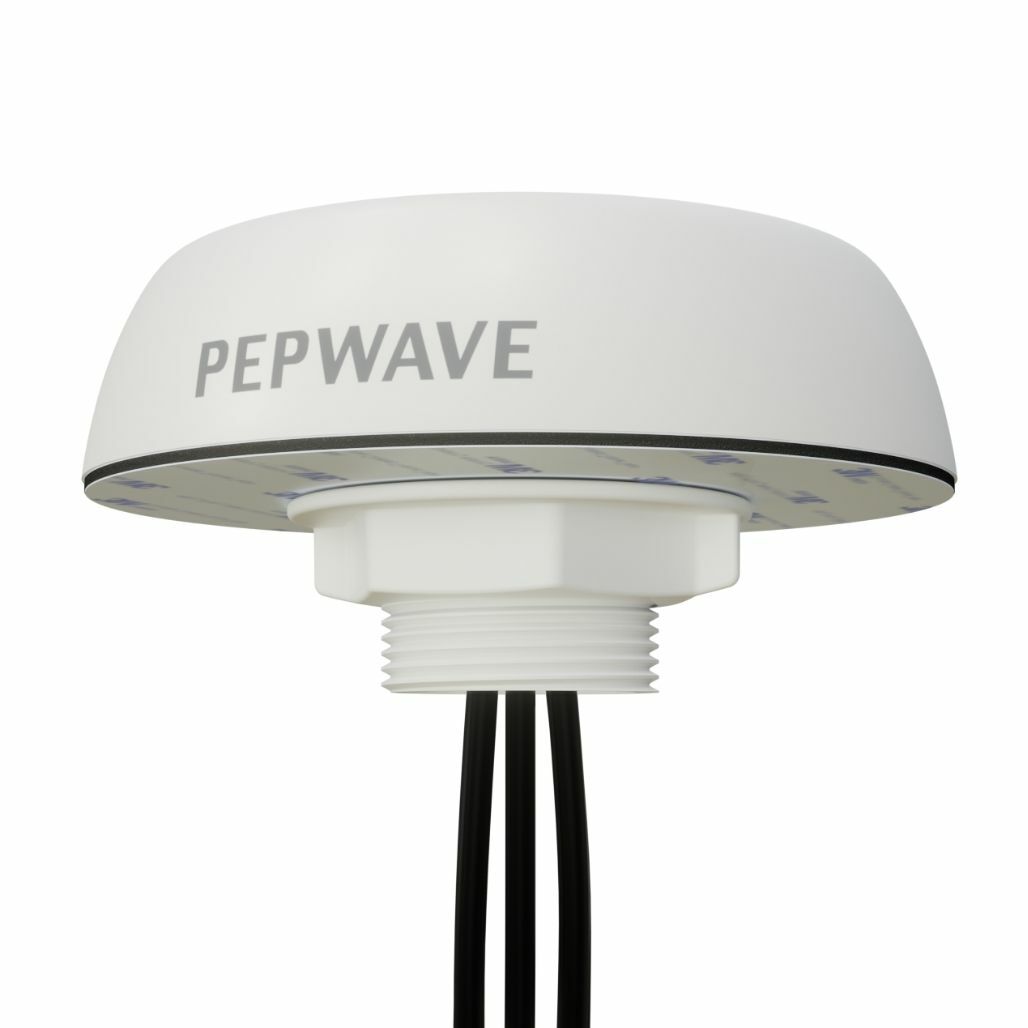

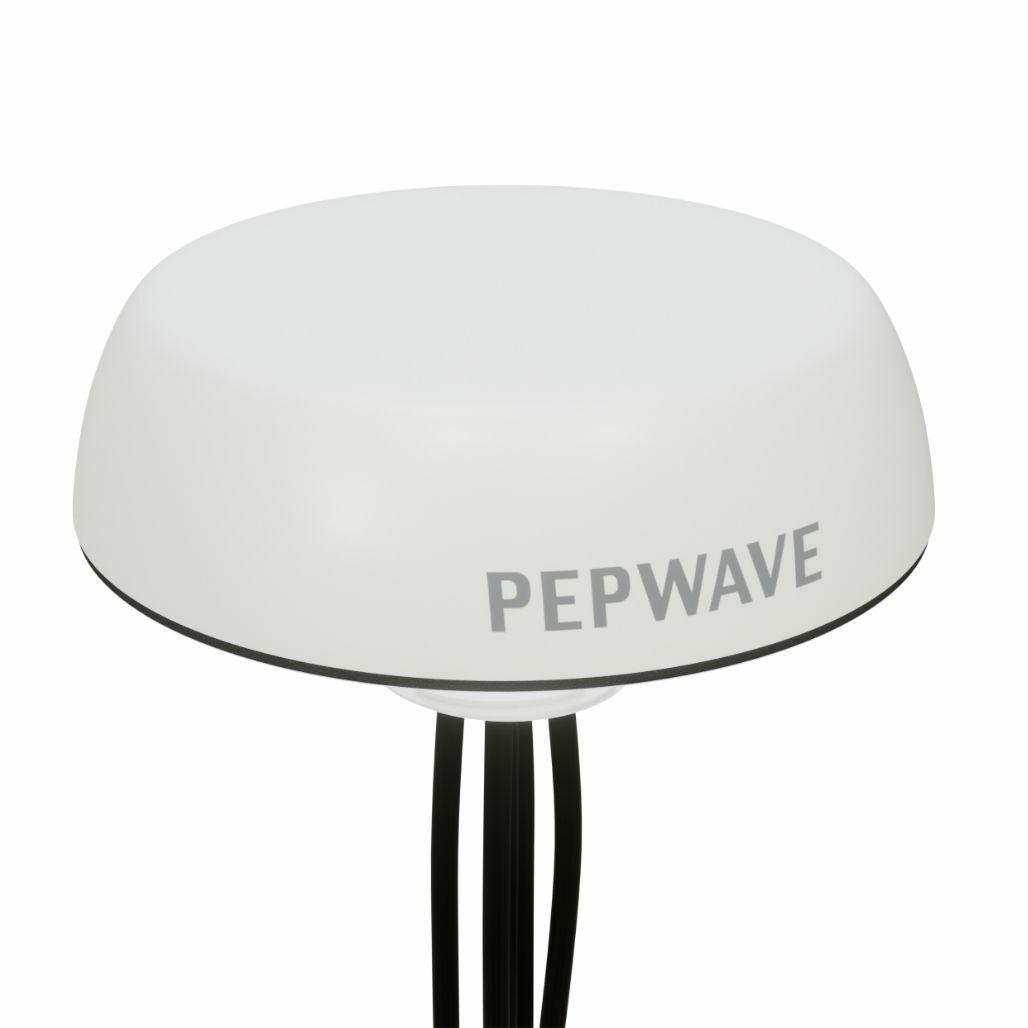

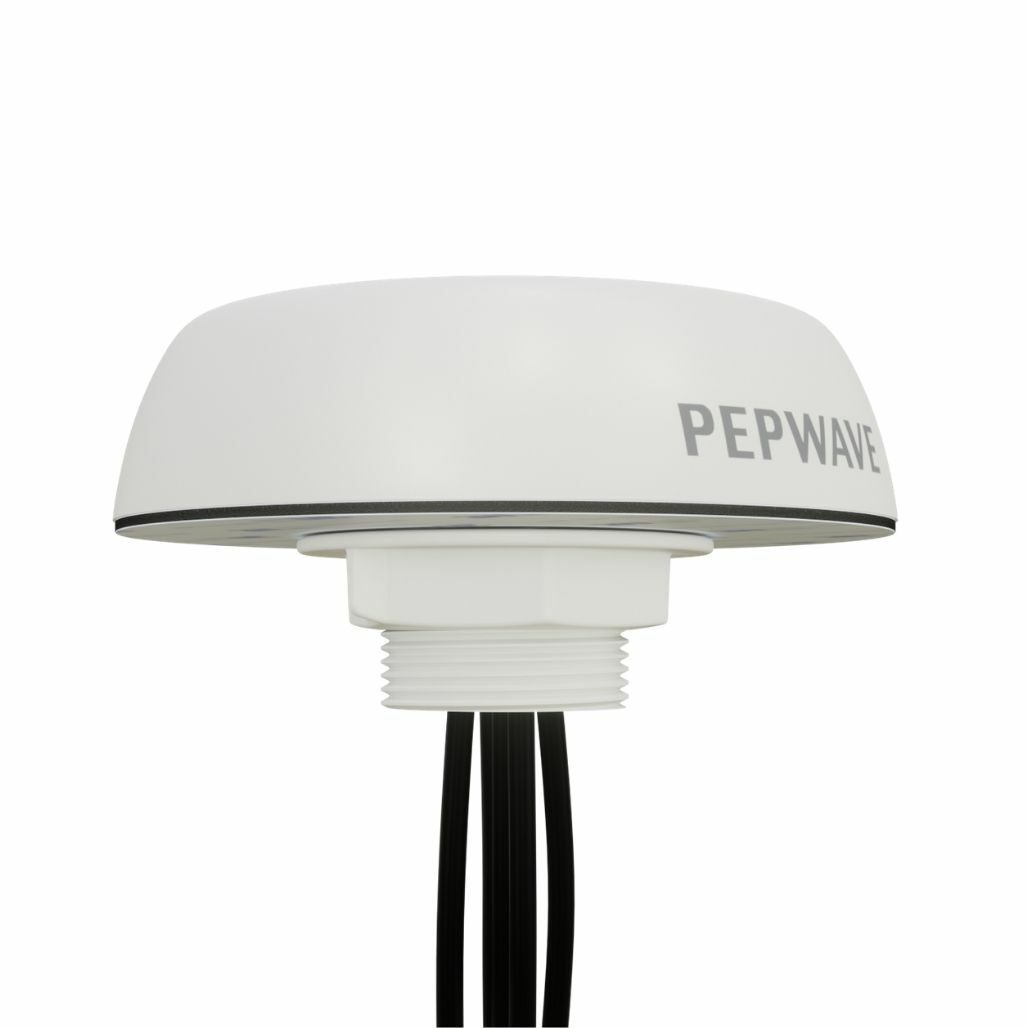

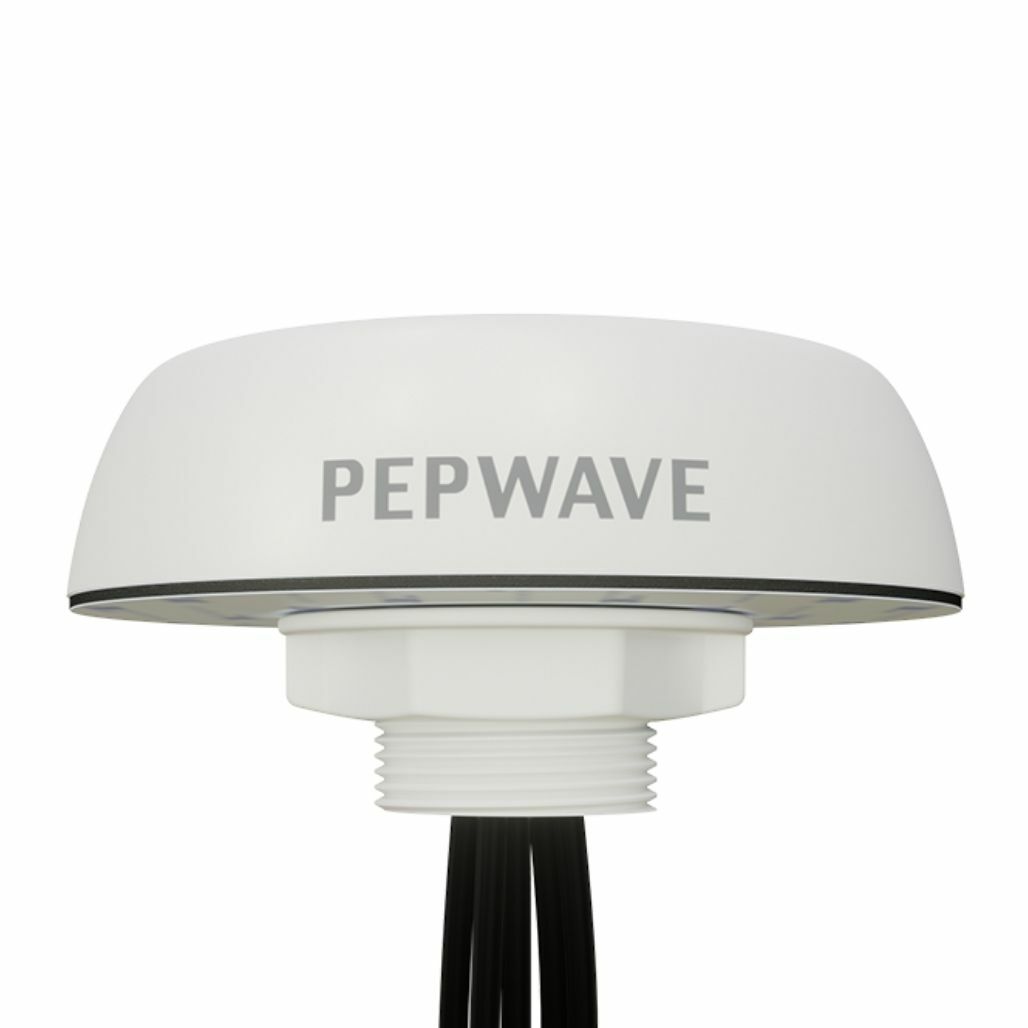

The Pepwave Mobility 40G is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.The Mobility 40G has a solid housing made of UV stable plastic materials. For easier installation, the antenna comes with a 6'7"" / 2m cable

Features:

  • 4x4 MIMO 5G ready cellular antenna system with GPS receiver
  • Cellular frequencies 617-960 MHz & 1710-4200 MHz & 4900-6000 MHz
  • Durable and UV-stable housing
  • IP67 rated

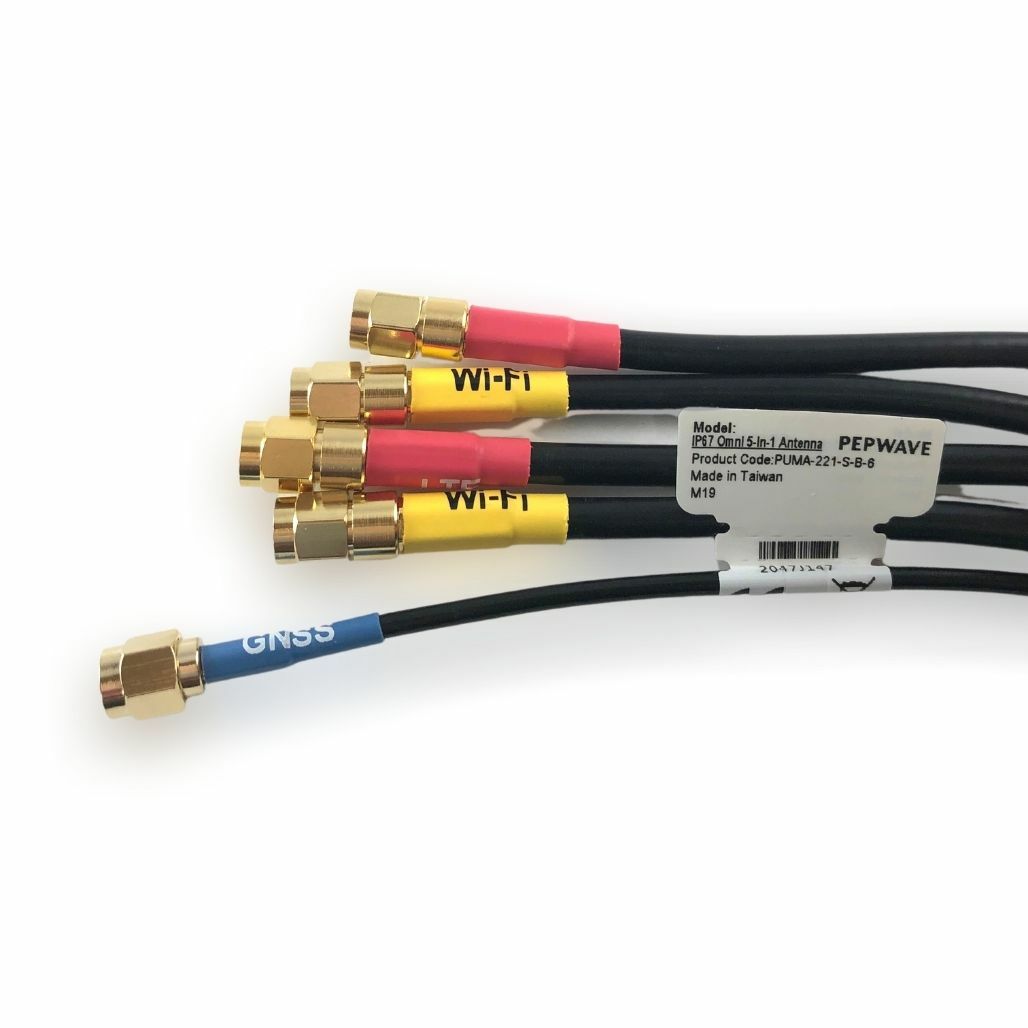

  • 5 x 6.5' cables with SMA Male connectors



Specifications:

  • Model: ANT-MB-40G-S-W-6
  • Frequency and gain:
    • Cable 1-4 (cellular):
      • 0.3dBi@ 617-960MHz
      • 5.1dBi@ 1710-2700MHz
      • 5.8dBi@ 3400-4200MHz
      • 7.0dBi@ 4900-6000MHz
    • Cable 5 (GPS):
      • 28 ± 3 dBi
  • Impedance: 50 Ohms
  • Cable and connectors:
    • Cellular: 4 x 2m (6.5') CFD200 (LMR200-equivalent) with SMA/Male
    • GPS: 1 x 2m (6.5') CFD200 (LMR200-equivalent) with SMA/Male

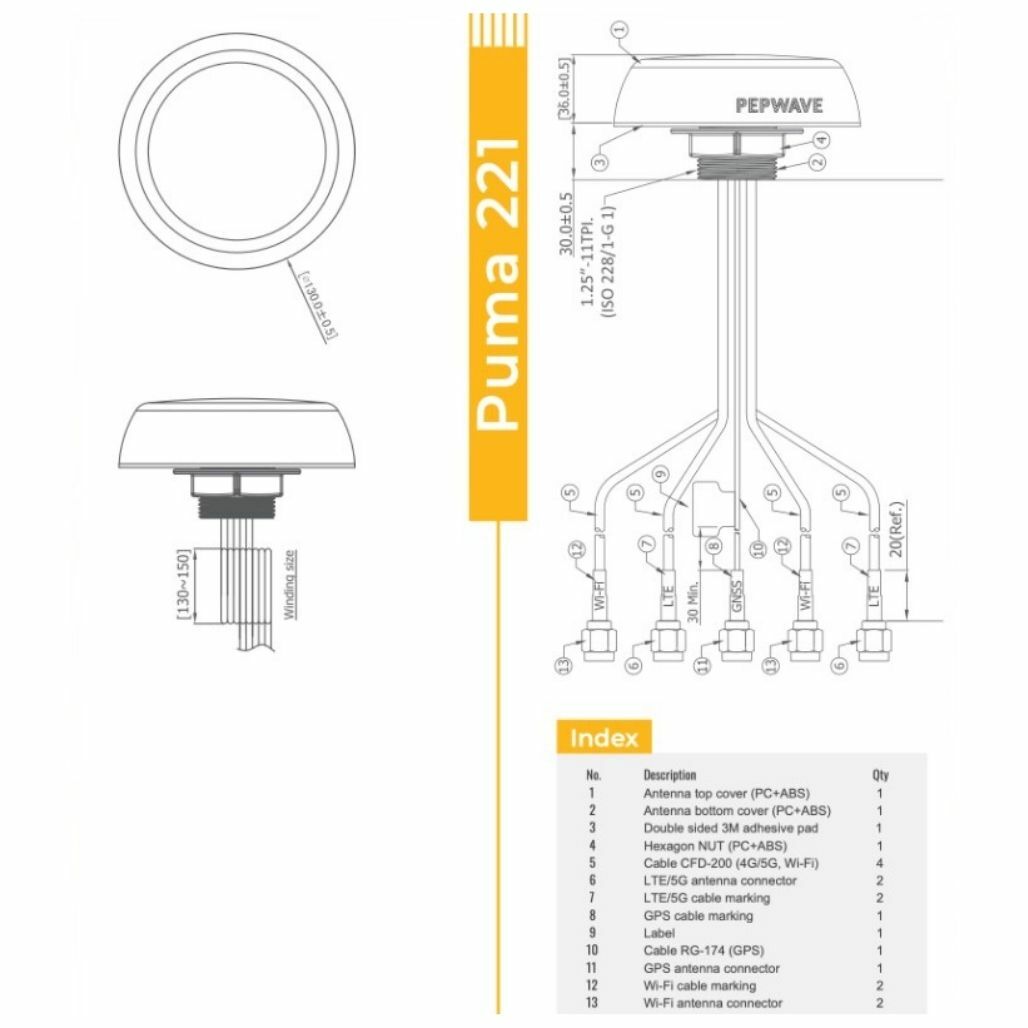

  • Dimensions: 5.12” OD x 2.64”
  • Mounting:
    • Mounting type:Panel mount
    • Mouting hole: 1 11/16" / 43mm
    • Max panel thickness: 19/32" / 15mm



Pepwave Mobility 40G Data Sheet

* Color: White
* Cable length: 6 - 6.5 feet
* Cellular frequencies: 0.3dBi@ 617-960MHz; 5.1dBi@ 1710-2700MHz; 5.8dBi@ 3400-4200MHz; 7.0dBi@ 4900-6000MHz
* Cellular bands: LTE bands B1 to B86 (except B31, B72, B73, B87, B88); 5G bands n1 to n99
* Cable type: CFD-200; RG-174
* Cable diameter: 13/64" / 5.0mm; 0.1" / 2.7mm
* Cable termination: SMA male, QMA male, N-type male
* Operating temperature: -40° - 176°F / -40° - 80°C
* UV resistance rating: UL 746C (F1, long-term UV exposure)
* Wind rating: 220 km/h
* Dimensions: 1.42" / 36mm (spigot not included); (Diameter) 5.12" / 130mm
* Supported mounting types: Panel, wall, pole
* Mounting hole: 1 11/16" / 43mm
* Max panel thickness: 19/32" / 15mm

* 4x4 MIMO 5G ready cellular antenna system with GPS receiver
* Compatible with dual-modem Pepwave routers (does not include WiFi antennas)
* Durable and UV-stable housing
* IP67 rated
* 5 x 6.5' cables with SMA Male connectors
