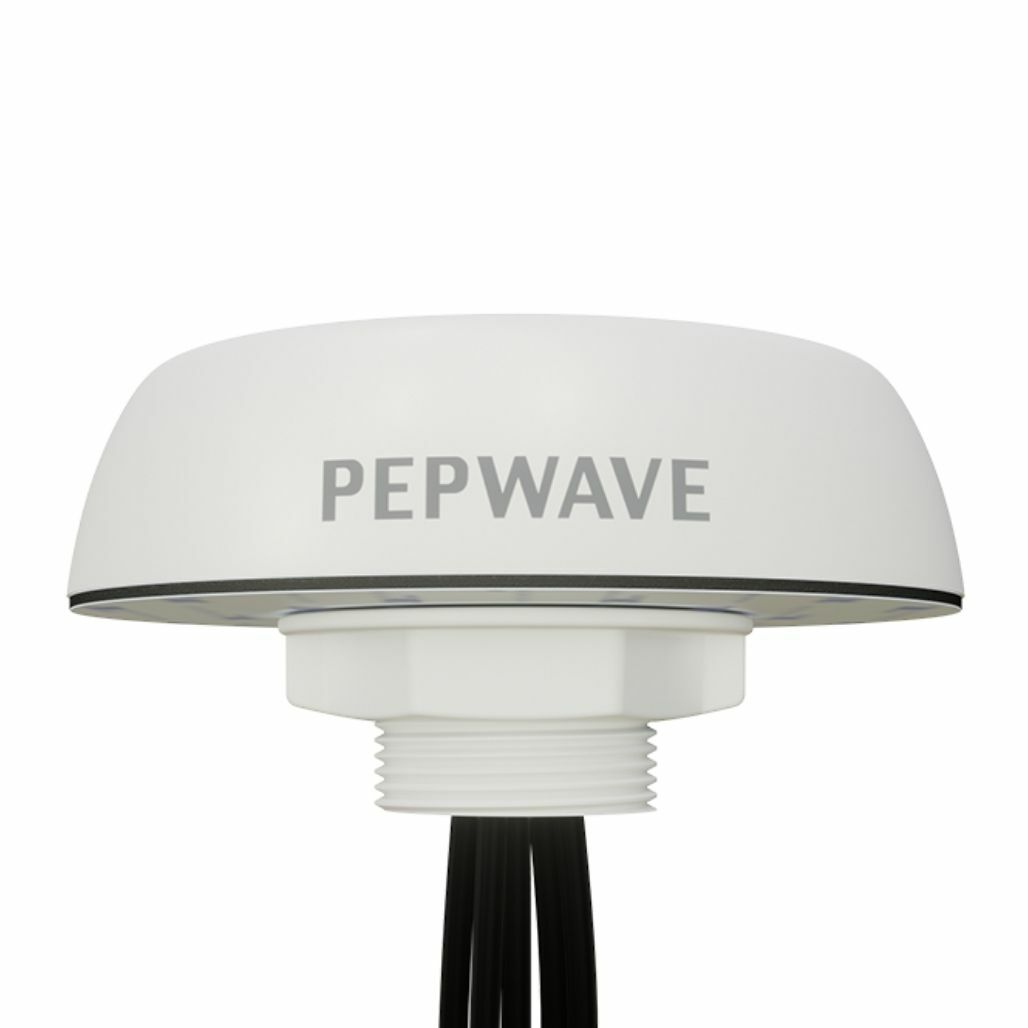

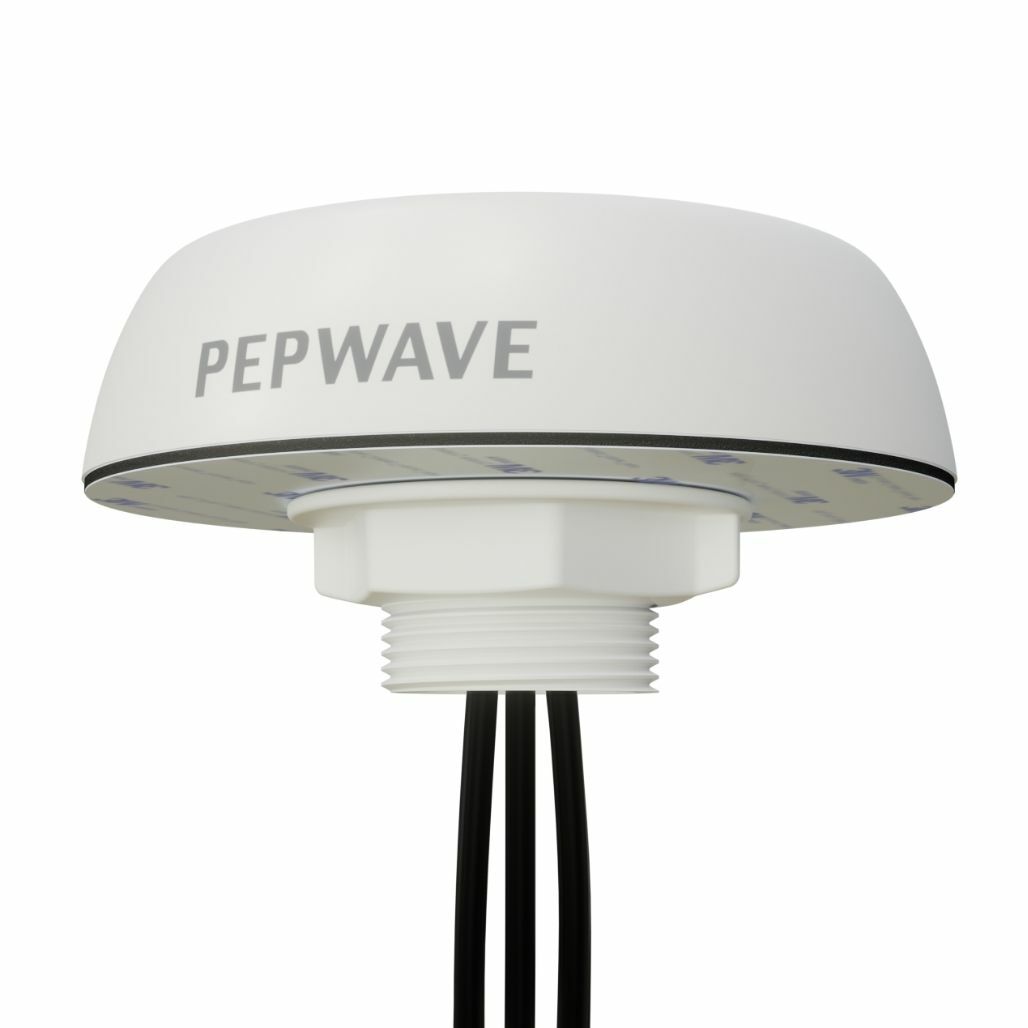

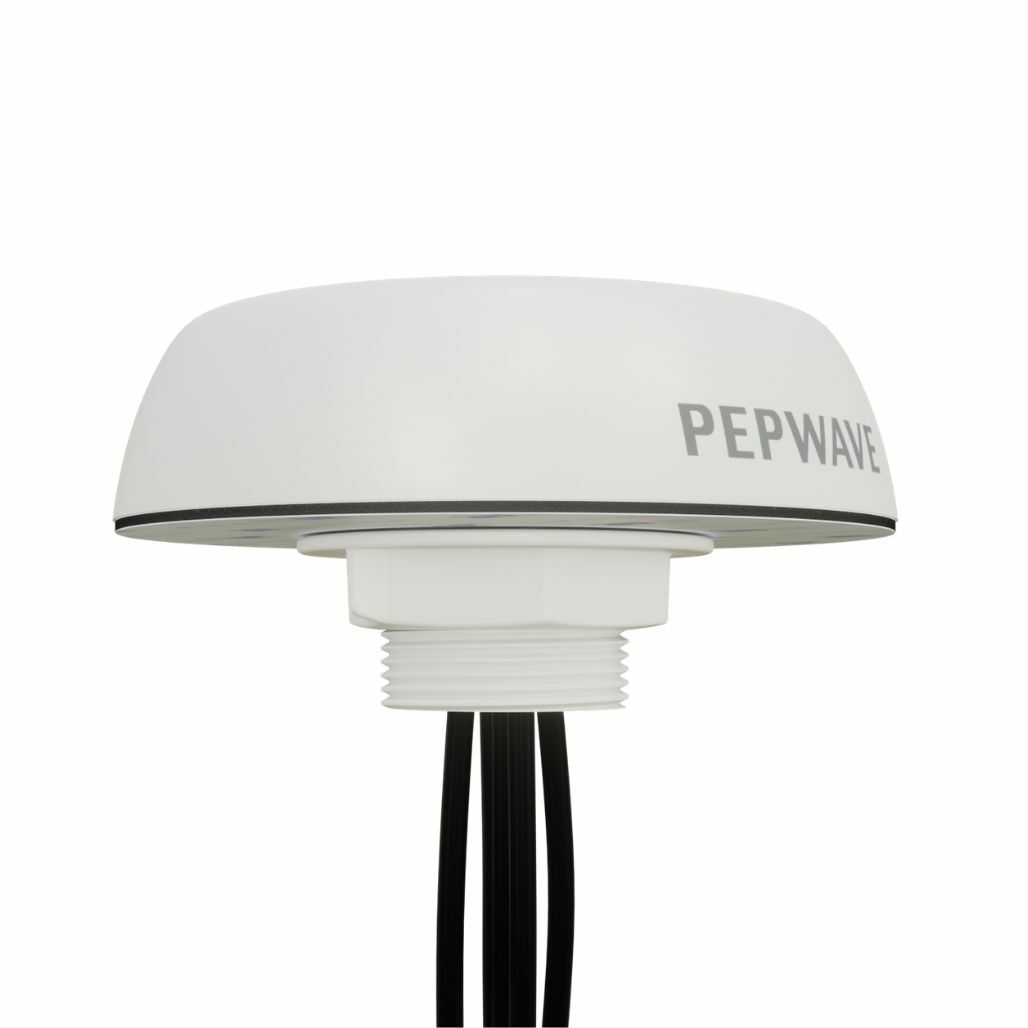

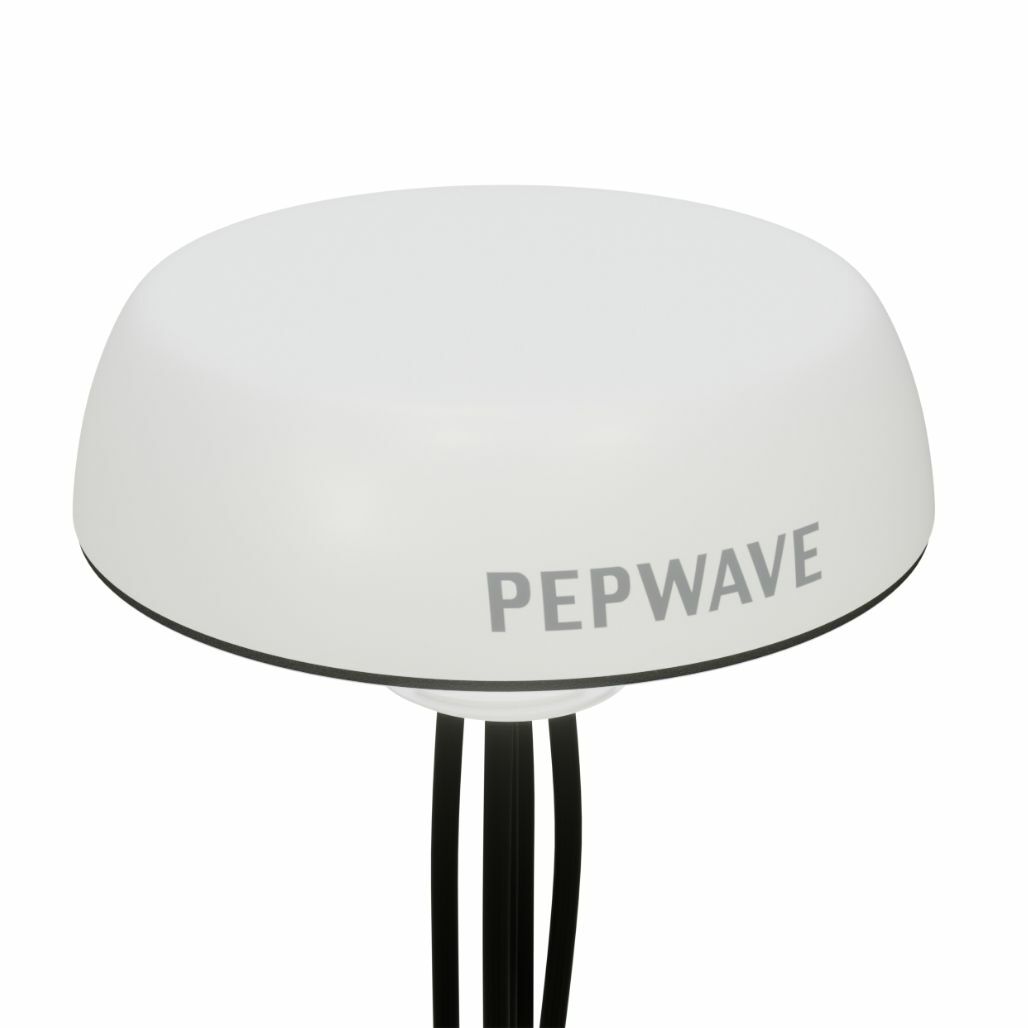

Pepwave Mobility 22G Antenna - 5-in-1 MIMO Omnidirectional - White

Pepwave
Sale
In stock
$197.00
$197.00 $350.00

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Help your customers identify what payments are accepted by your store.

The PepWave Mobility 22G is a 5-in-1 antenna built for mobile applications. It supports 2x2 cellular MIMO for high bandwidth and solid reliability, dual-band (2.4GHz & 5GHz) Wi-Fi and GPS. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.

The Mobility 22G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options.

Features:

  • 5-in-1 cellular and W-Fi antenna system with GPS receiver
  • 2x2 Cellular frequencies: 600-6000 MHz
  • 2x2 Wi-Fi frequencies: 2400-2500 MHz & 5000-6000 MHz
  • Durable and UV-stable housing
  • IP67 rated



Specifications:

  • Model: ANT-MB-22G-S-W-6
  • Frequency and gain:
    • Cable 1-2 (cellular):
      • 1.2dBi: 617-960MHz
      • 5.7dBi: 1710-2700MHz
      • 5.6dBi: 3400-4200MHz
      • 6.0dBi: 5000-6000MHz
    • Cable 3-4 (WiFi):
      • 4.8dBi: 2400-2500MHz
      • 7.4dBi: 5000-6000MHz
    • Cable 5 (GPS):
      • 28 ± 3 dBi
  • Impedance: 50 Ohms

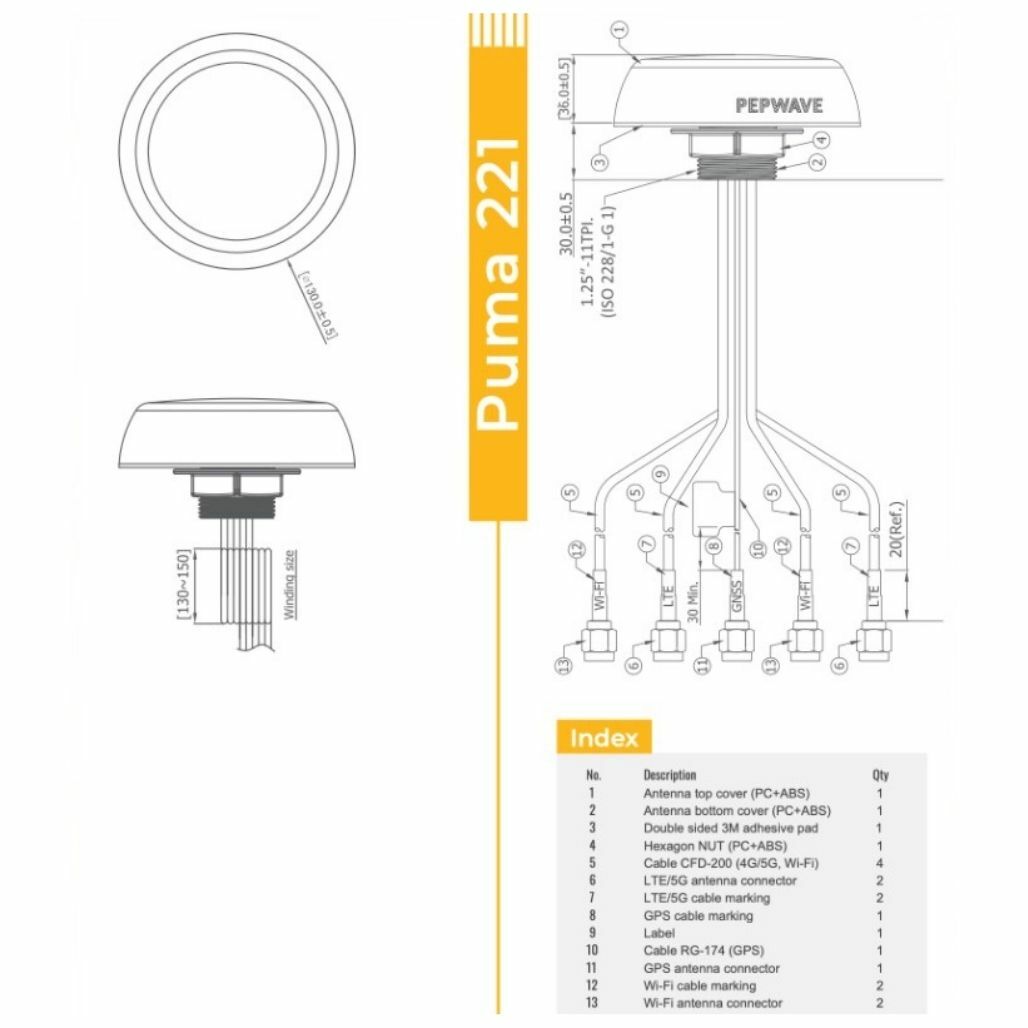

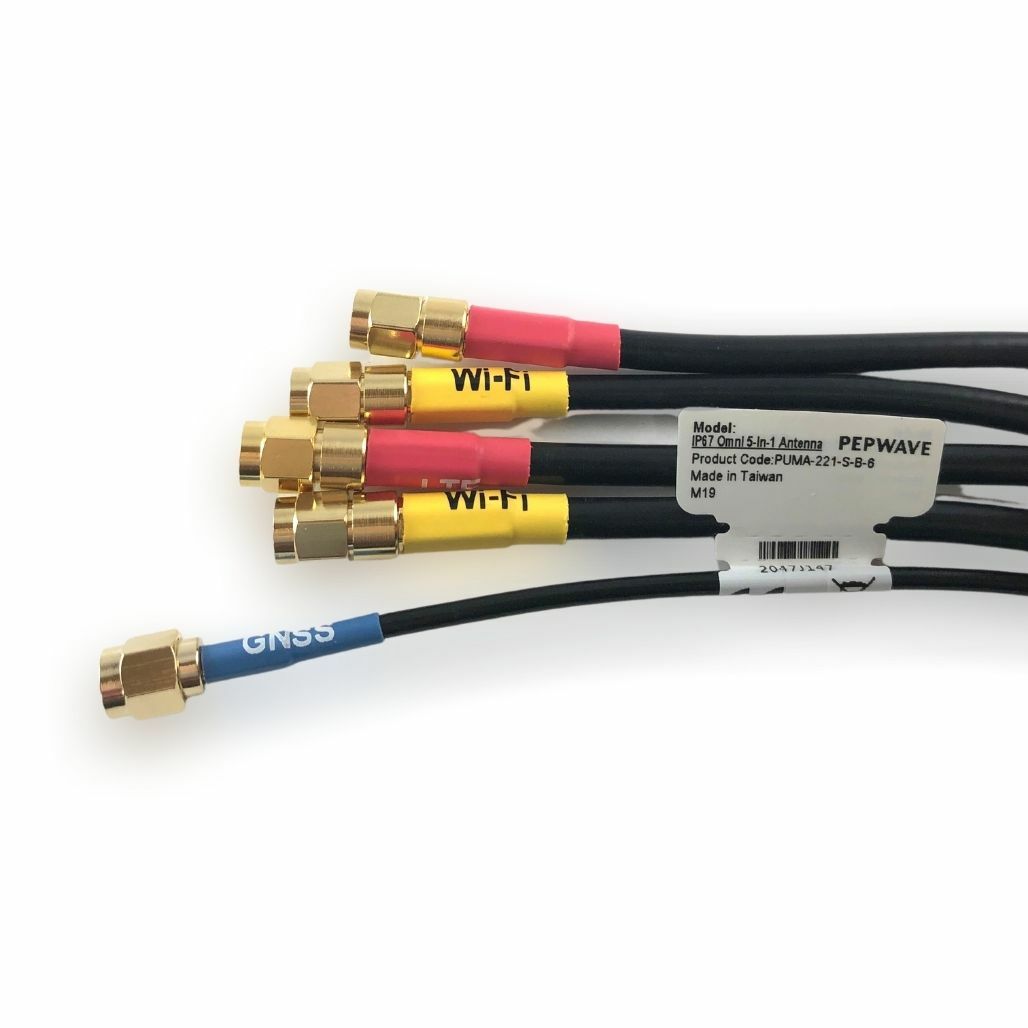

  • Cable and connectors:
    • Cellular: 2 x 2m (6.5') CFD200 (LMR200-equivalent) with SMA/Male
    • WiFi: 2 x 2m (6.5') CFD200 (LMR200-equivalent) with RP-SMA/Male
    • GPS: 1 x 2m (6.5') CFD200 (LMR200-equivalent) with SMA/Male
  • Dimensions: 5.12” wide x 1.42” high (antenna only; cables not included in this measurement)
  • Mounting:
    • Mounting type: Panel, wall, pole
    • Mounting hole: 1 11/16" / 43mm
    • Max panel thickness: 19/32" / 15mm



Pepwave Mobility 22G Data Sheet

* Color: White
* Cable length: 6 - 6.5 feet
* Cellular frequencies: 1.2dBi: 617-960MHz; 5.7dBi: 1710-2700MHz; 5.6dBi: 3400-4200MHz; 6.0dBi: 5000-6000MHz
* Cellular Bands: LTE bands B1 to B86 (except B31, B72, B73, B87, B88); 5G bands n1 to n99
* Wi-Fi frequencies: 4.8dBi: 2400-2500MHz; 7.4dBi: 5000-6000MHz
* Weatherproof: IP67 rated
* Coax cable types: CFD-200 (4G/5G, Wi-Fi); RG-174 (GPS)
* Connector types: SMA male (4G/5G, GPS); RP-SMA male (Wi-Fi)
* Dimensions: 5.12” wide x 1.42” high (antenna only; cables not included in this measurement)
* Mounting type: Panel, wall, pole
* Mounting hole: 1 11/16" / 43mm
* Max panel thickness: 19/32" / 15mm
* Cable loss: 0.33 dB/m @ 900 MHz; 0.49 dB/m @ 2000 MHz; 0.55 dB/m @ 2500 MHz; 0.87 dB/m @ 5800 MHz

* Compatible with single-modem Pepwave routers
* Solid housing made of UV-stable plastic materials
* GPS receiver
* Works with T-Mobile Band 71
* Comes with attached 6 - 6.5 foot cables
* Compatible with Poynting 5-in-1 (3m) and
Poynting 5-in-1 (5m) Extension Cables (sold separately)
