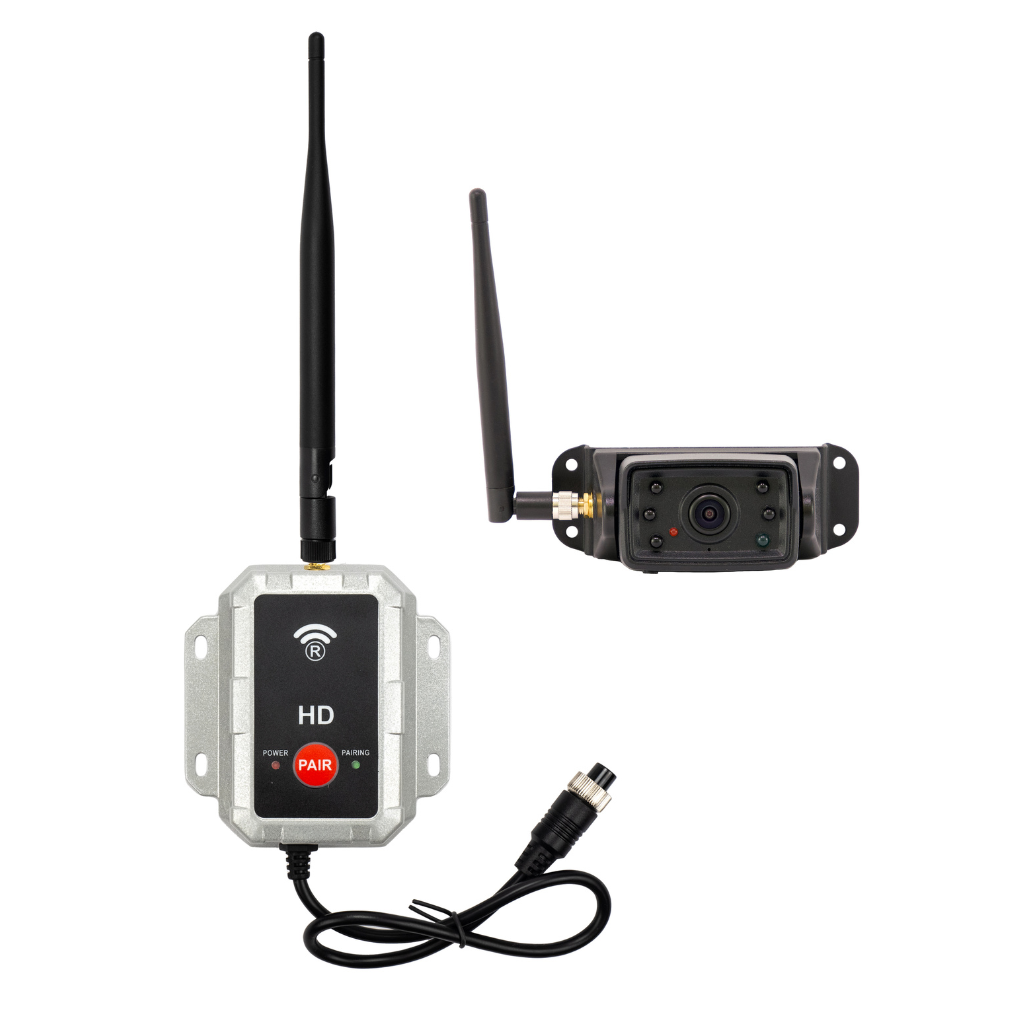

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless camera and receiver

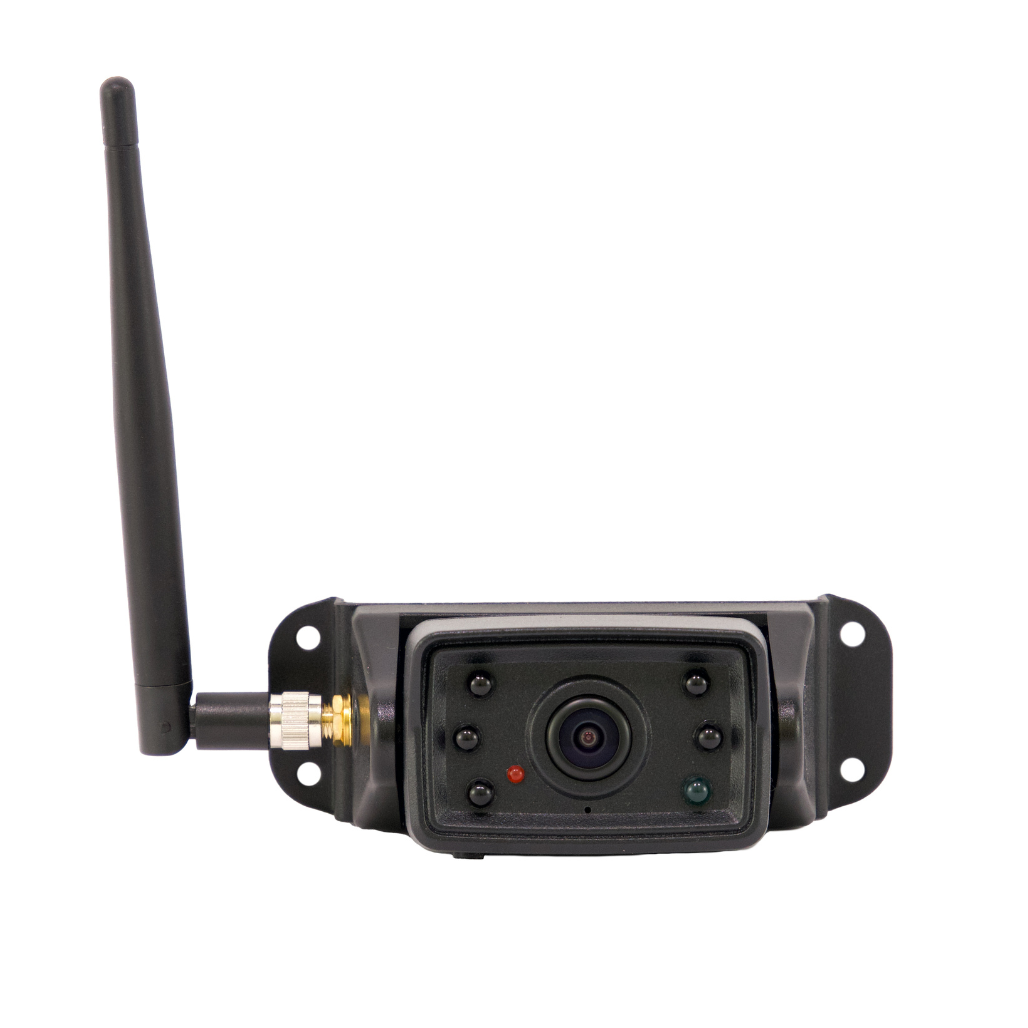

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless camera front view

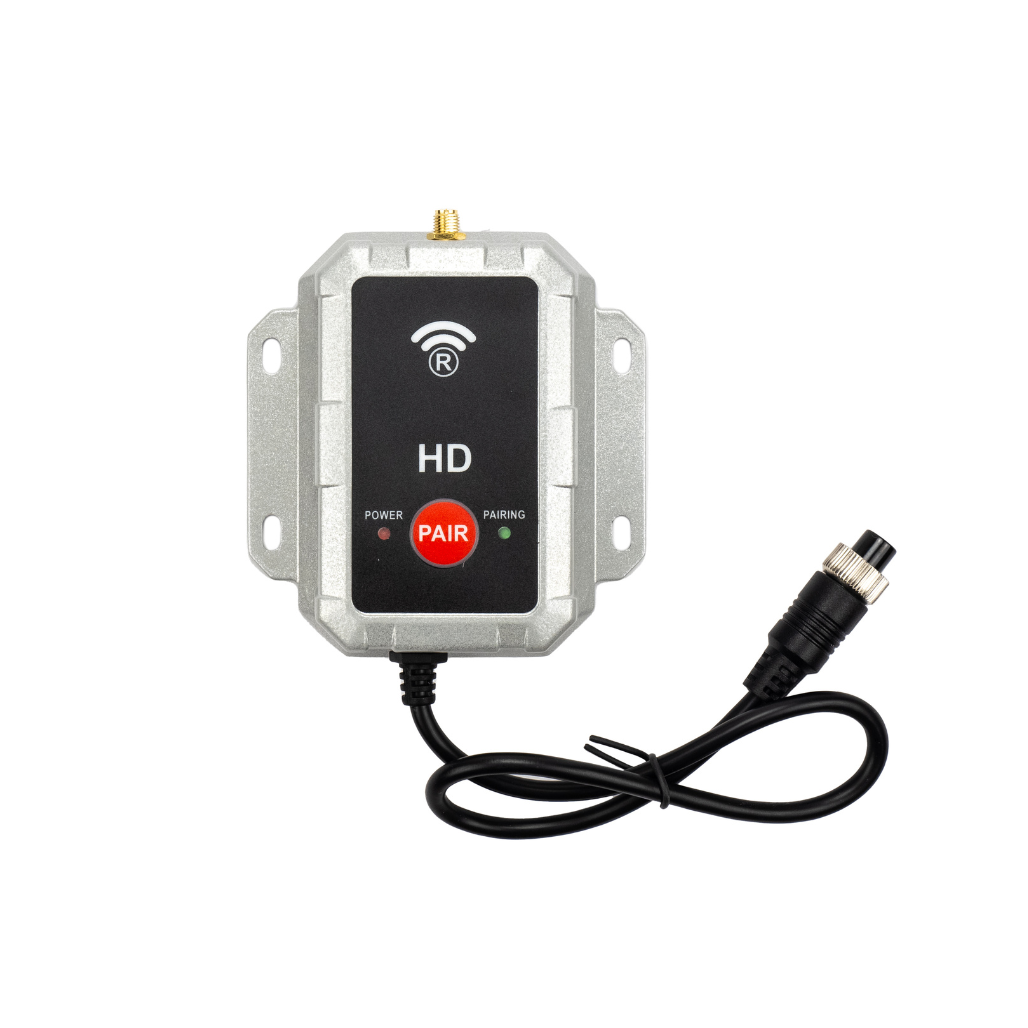

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless receiver

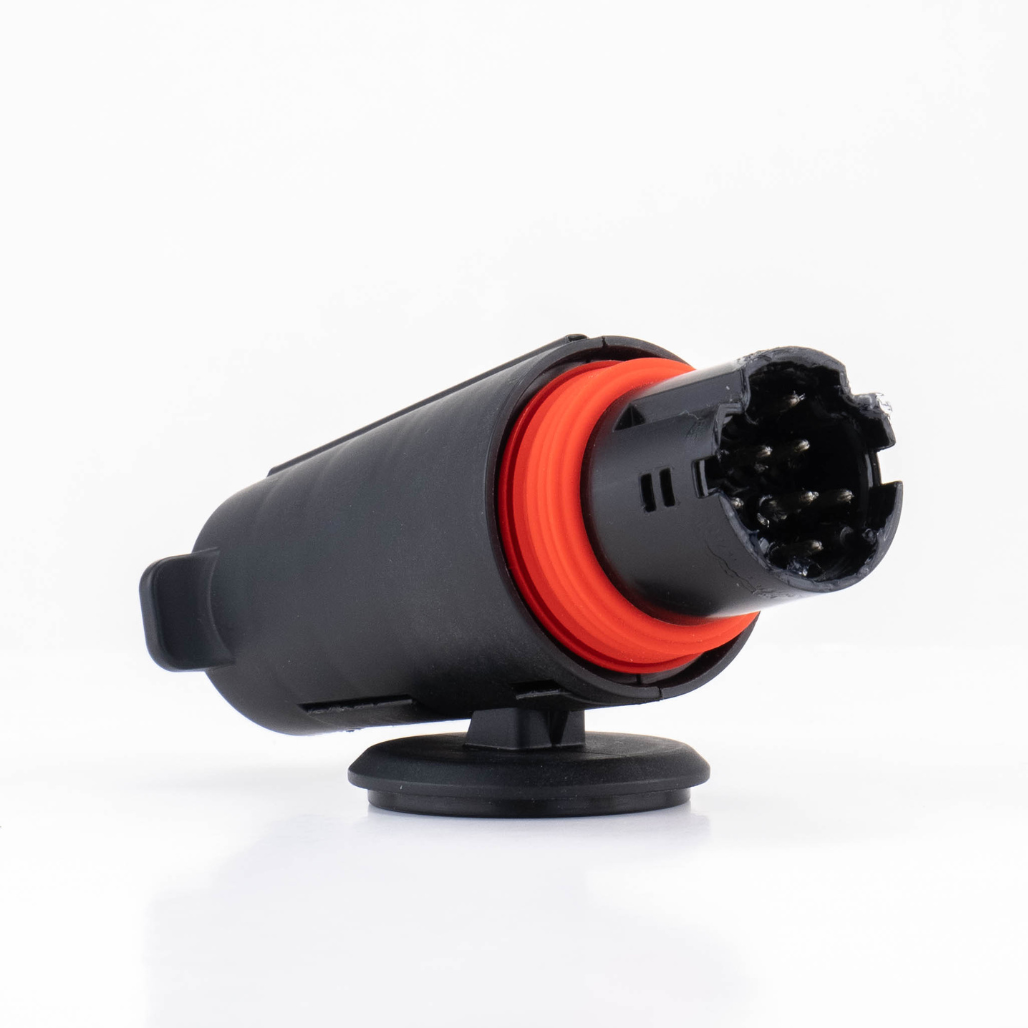

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - 12-pin adapter front view

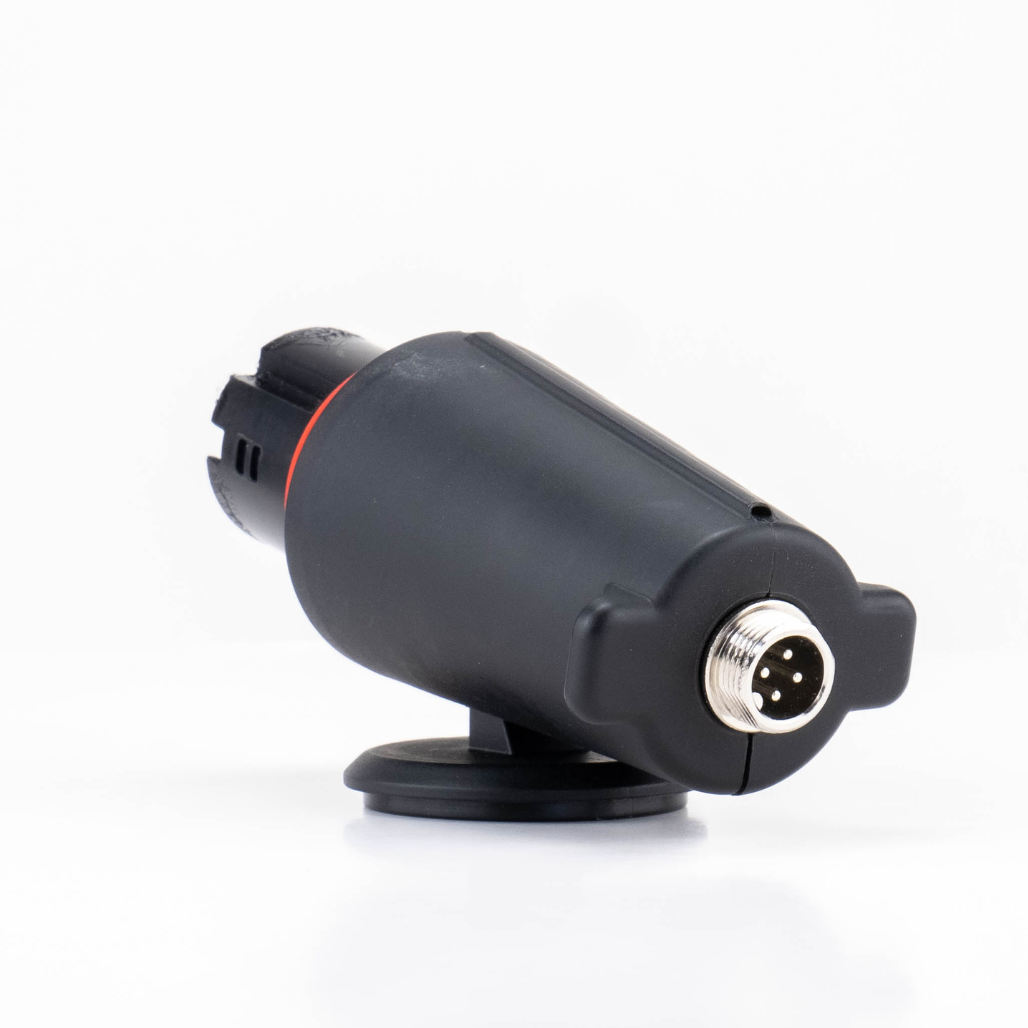

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - 12-pin adapter rear view

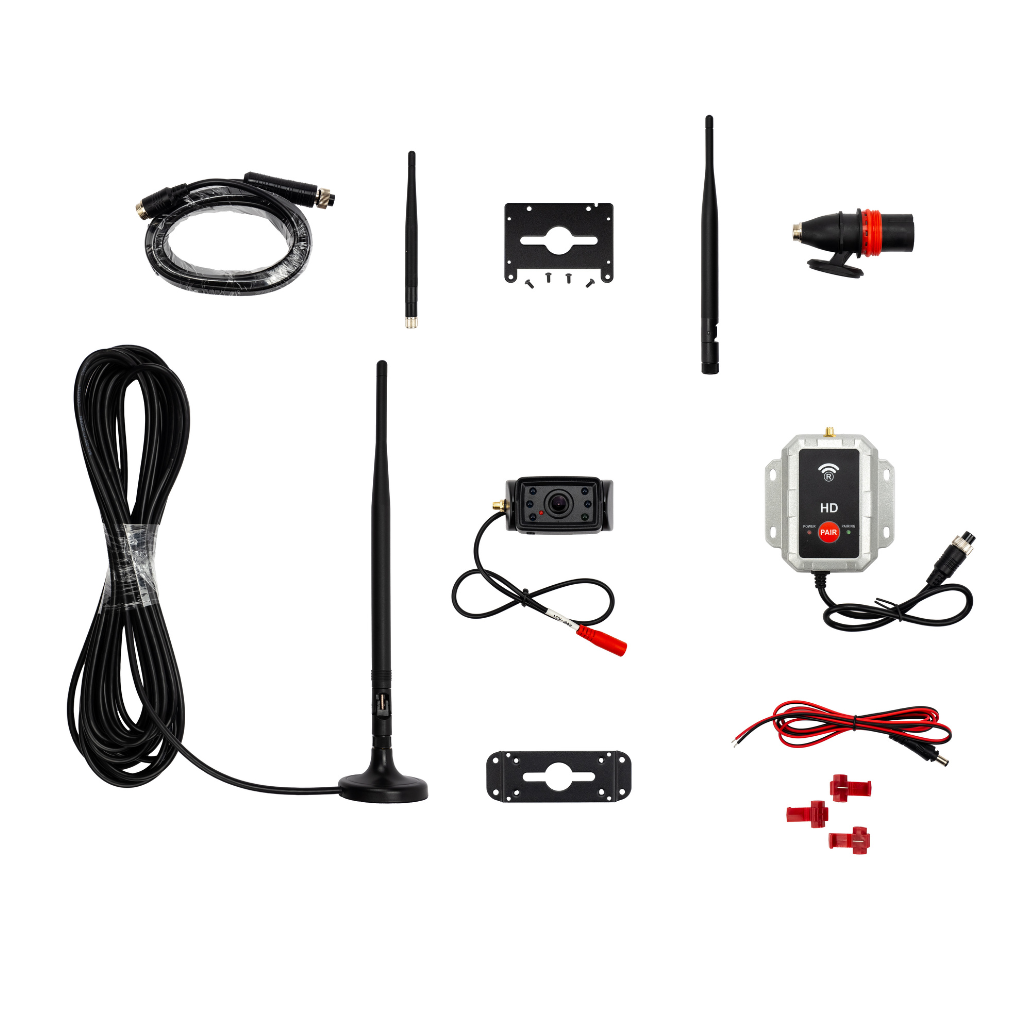

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless integration kit contents

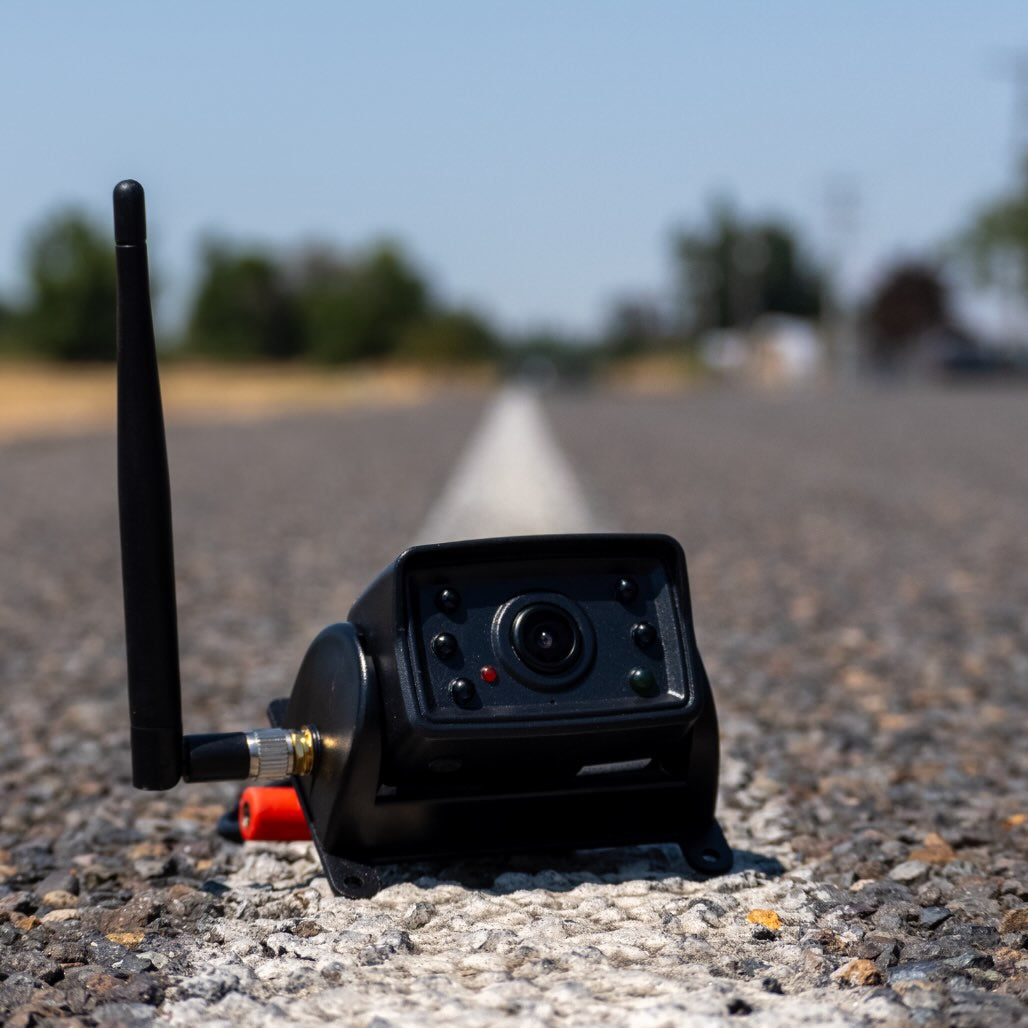

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Camera on outdoor surface

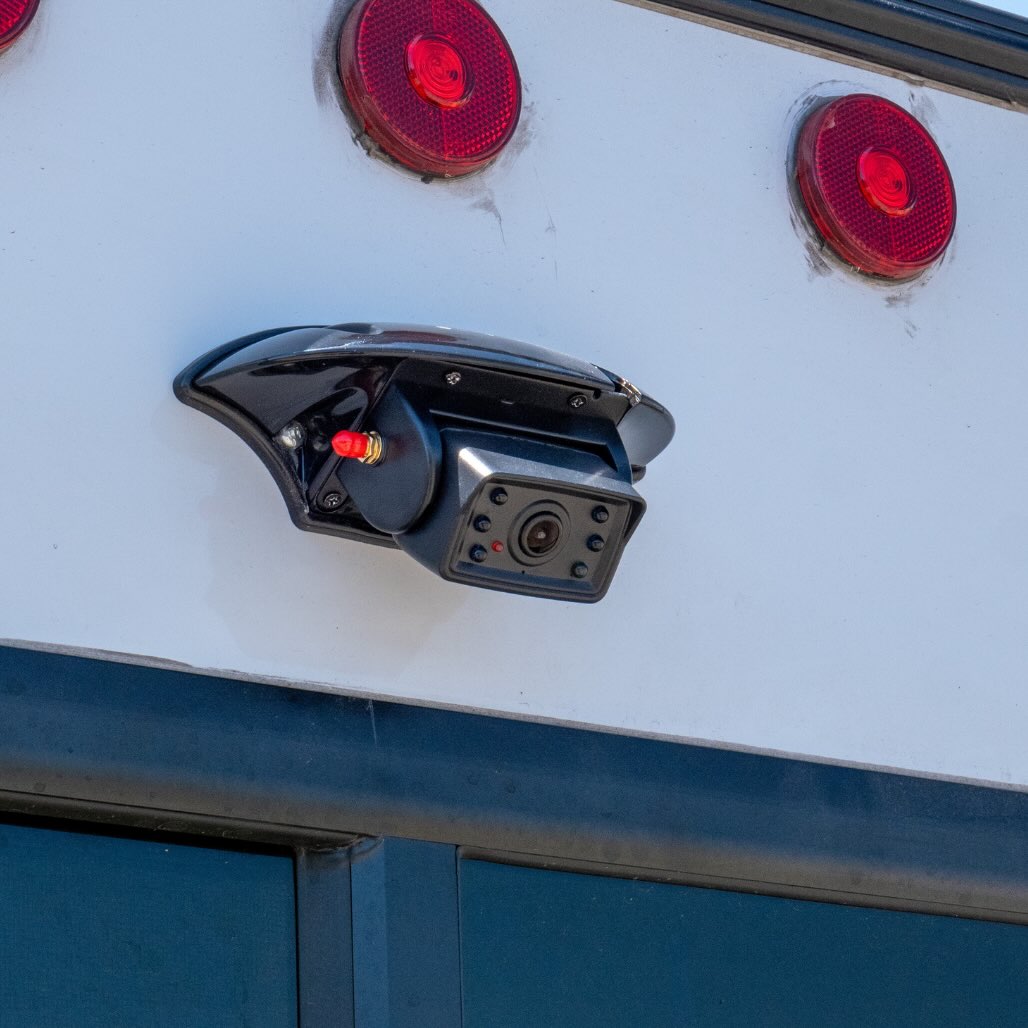

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Camera mounted on trailer
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless camera and receiver
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless camera front view
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless receiver
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - 12-pin adapter front view
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - 12-pin adapter rear view
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Wireless integration kit contents
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Camera on outdoor surface
VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks - Camera mounted on trailer

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.
SKU: TRV-VW-FDIKT-WL Barcode: 746790113765
(1)

VisionWorks Wireless In-Dash Camera Kit for Select Ford and Ram Trucks

VisionWorks

View a trailer camera on the factory screen in a compatible Ford Super Duty or Ram HD truck.

In stock
$499.00

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Help your customers identify what payments are accepted by your store.

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Donnie

Installation is a snap. It will auto pair and then you push the aux camera button to view. If you are planning to use this camera on a trailer being towed with a 2021-22 F150, make sure the 12 pin harness is fully terminated. If that harness only has 2 wires, this camera will not work. However, the rear bumper harness is an easy swap, just get the VIN for a Lariat or Platinum trim F150, and order the rear bumper harness for it. The harness is plug and play, and it is around a 30 minute job to swap. You will have two connectors left over, one at each end of the harness. They are for trucks with automated parking assist. They can be left unplugged, i folded mine back across the harness and taped them off. If you start athe the center of the truck, the plugs line right up with their respective connections. 23 and up trucks need to swap the 7/4 connector in the bumper to the 7/12 connector, and use the capped off harness next to the 7 pin connector.

View a trailer camera on the factory screen in a compatible Ford Super Duty or Ram HD truck. This wireless kit integrates with supported factory camera systems, so a separate dash monitor is not needed. Fitment depends on the truck equipment, screen and camera connector.

Features

  • Uses a compatible factory in-dash screen
  • Trailer camera and factory integration adapter included
  • Wireless camera link with booster antenna

Specifications

  • Manufacturer part: VWFDIKT-WL
  • Video connection: Wireless
  • Truck camera connector: 12-pin

What's Included

  • Wireless HD camera with night vision
  • RV pre-wire adapter and bracket
  • Weatherproof receiver
  • 12V hardware and universal bracket
  • 15-foot extension cable
  • Booster antenna
  • Ford/Ram 12-pin integration adapter

Confirm your truck year, screen, camera-prep package and connector before ordering. Published fitment covers select 2017-2025 Ford Super Duty and 2020-2025 Ram HD trucks; 2026 fitment is not established.

Ford: Ultimate Trailer Tow System (option 874) and SYNC 3 with 8-inch screen or SYNC 4 with 12-inch screen.

Ram: Auxiliary Camera Prep Package (XFQ) and Uconnect with 8.4- or 12-inch screen. Additional harnesses or dealer programming may be required.

This kit uses the compatible truck 12-pin camera receptacle above the 7-way connector.

Camera still requires a wired power connection.

Wireless range is a line-of-sight rating. Vehicle construction, obstructions and installation can reduce range.
