SKU: PEPWAVE-MAX-BR1-PRO-5GN-T-PRM Barcode: 710859517771
(18)

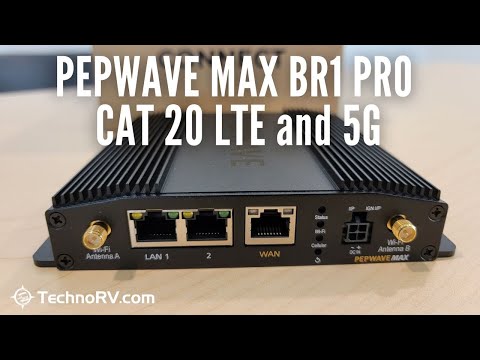

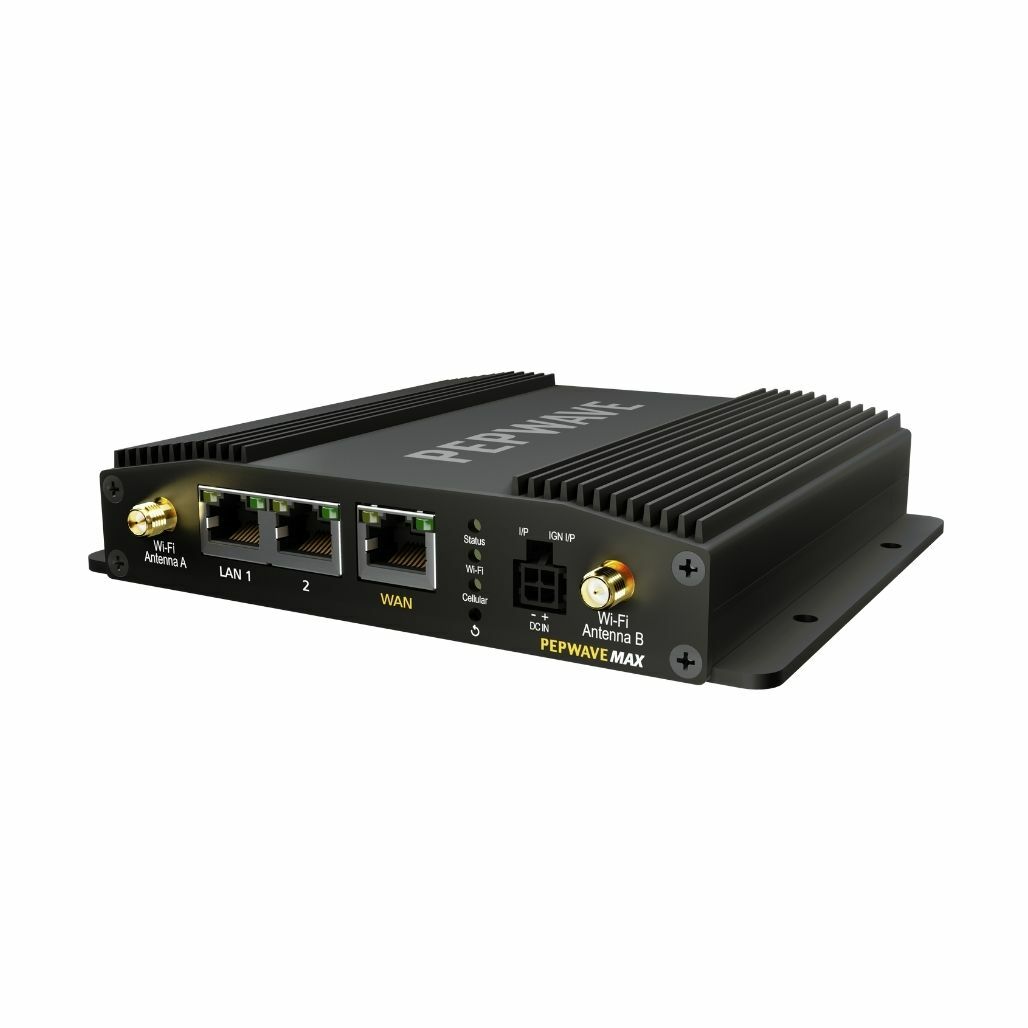

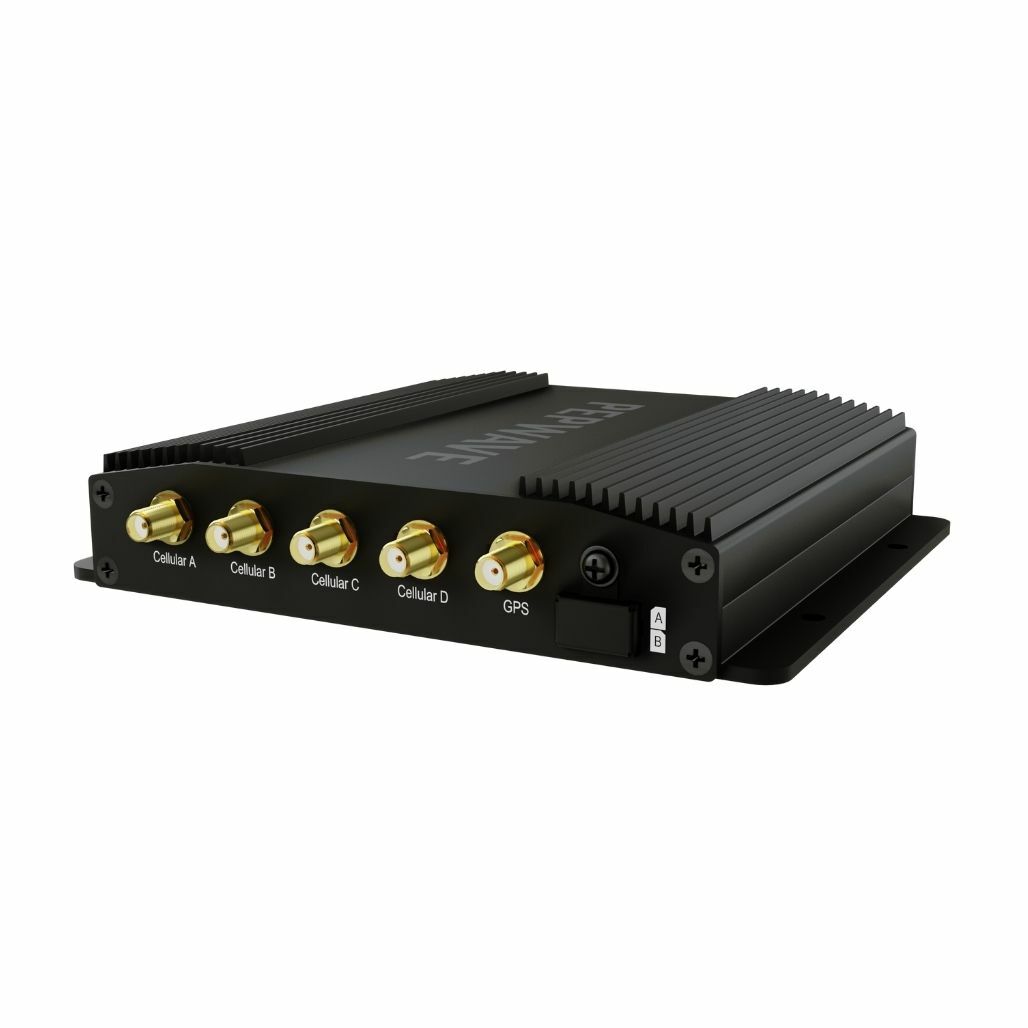

Pepwave Max BR1 Pro 5G Router + PrimeCare + 12V Power Bundle - PEPWAVE-MAX-BR1-PRO-5GN-T-PRM

Pepwave
Sale
Out of stock
$799.00
$799.00 $999.00

Add a Data Plan to Your Pepwave (Cost Prorated Based on Order Date)

$116.52
$179.74
$116.52
$152.65
$152.65

Device Configuration

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Help your customers identify what payments are accepted by your store.









* Cellular modem: 5G (4 Gbps/700 Mbps); CAT 20: 2 Gbps (downlink)/150 Mbps (uplink)

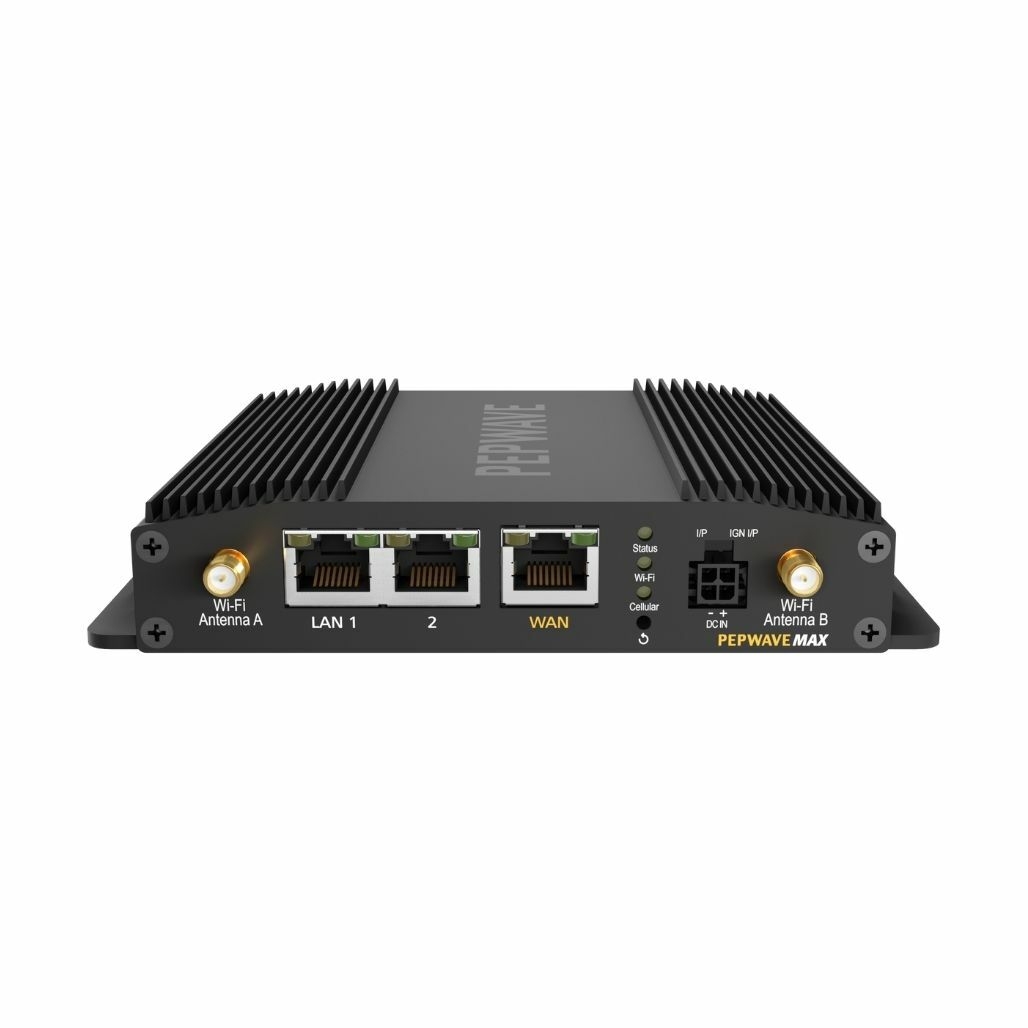

* WAN Interface: 1x 10/100/1000/2500 Ethernet; 1x Embedded Cellular Modem with Redundant SIM Slots
* LAN Interface: 2x 10/100/1000M Ethernet
* Wi-Fi interface: Simultaneous Dual-Band (2.4GHz / 5GHz); Wi-Fi 5, 2X2 MIMO; Wi-Fi WAN and/or AP
* SpeedFusion features: Hot Failover; WAN Smoothing; Bandwidth Bonding
* Router throughput: 1Gbps
* Recommended users: 1-150
* Cellular Data Rate: 5G: 4 Gbps / 700 Mbps
CAT-20: 2 Gbps / 150 Mbps
* 5G (NSA) Sub 6Ghz Cellular Bands: n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79
* LTE Cellular Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
* Operating temperature: -40° – 149°F / -40° – 65°C
* Weight: 1.5 pounds / 680 grams
* Dimensions: 5.78 x 5.08 x 1.15 inches
* Power consumption: 8W (nominal), 19W (max.)
* Power input: AC Adapter: AC Input 100V-240V / DC Output 12V 10V – 30V DC
* Warranty: 1 year with option to extend annually

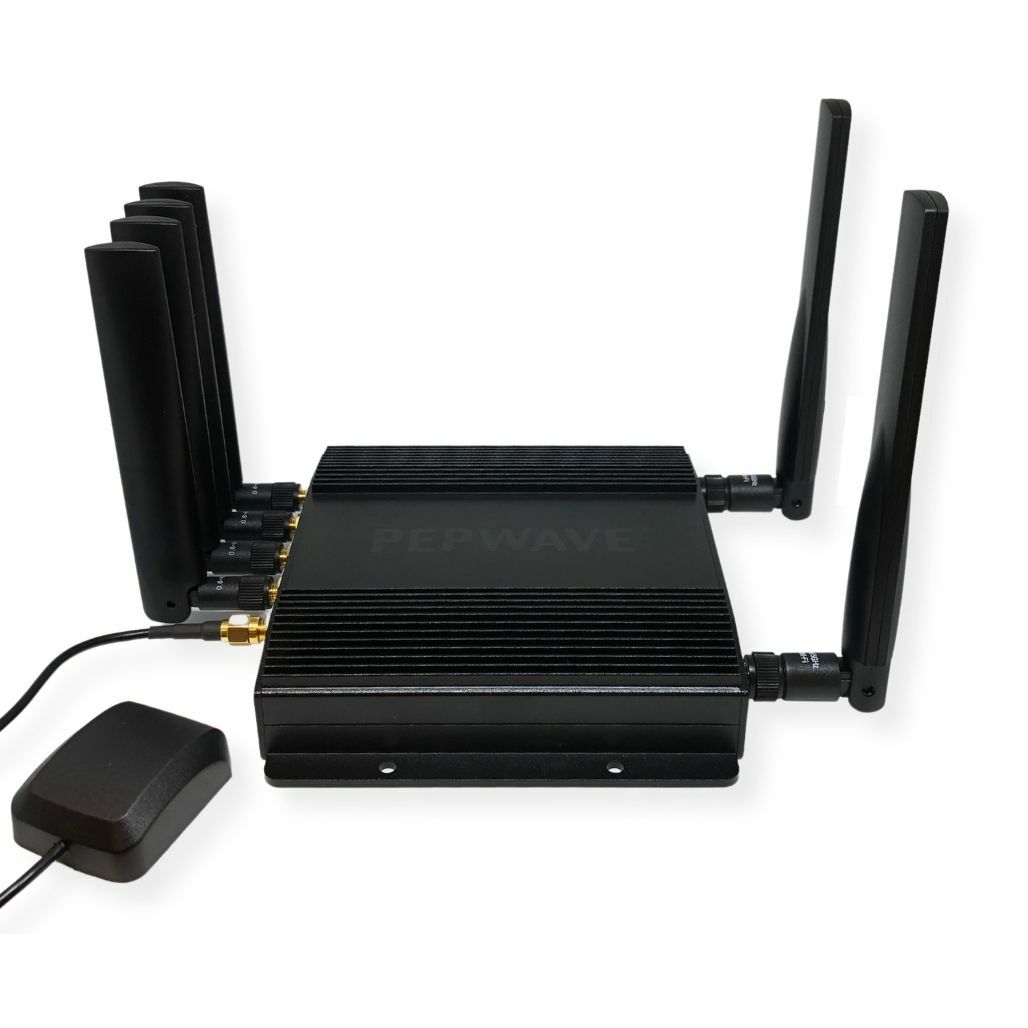

COMPATIBLE EXTERNAL ANTENNA OPTIONS:

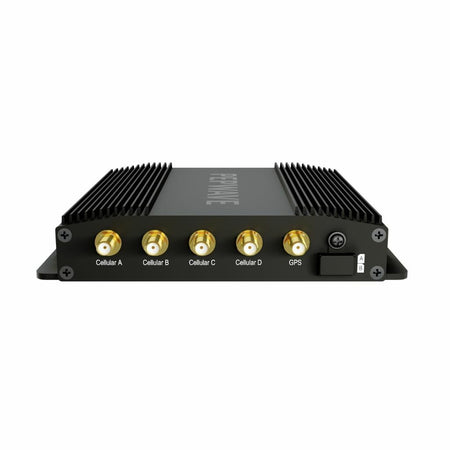

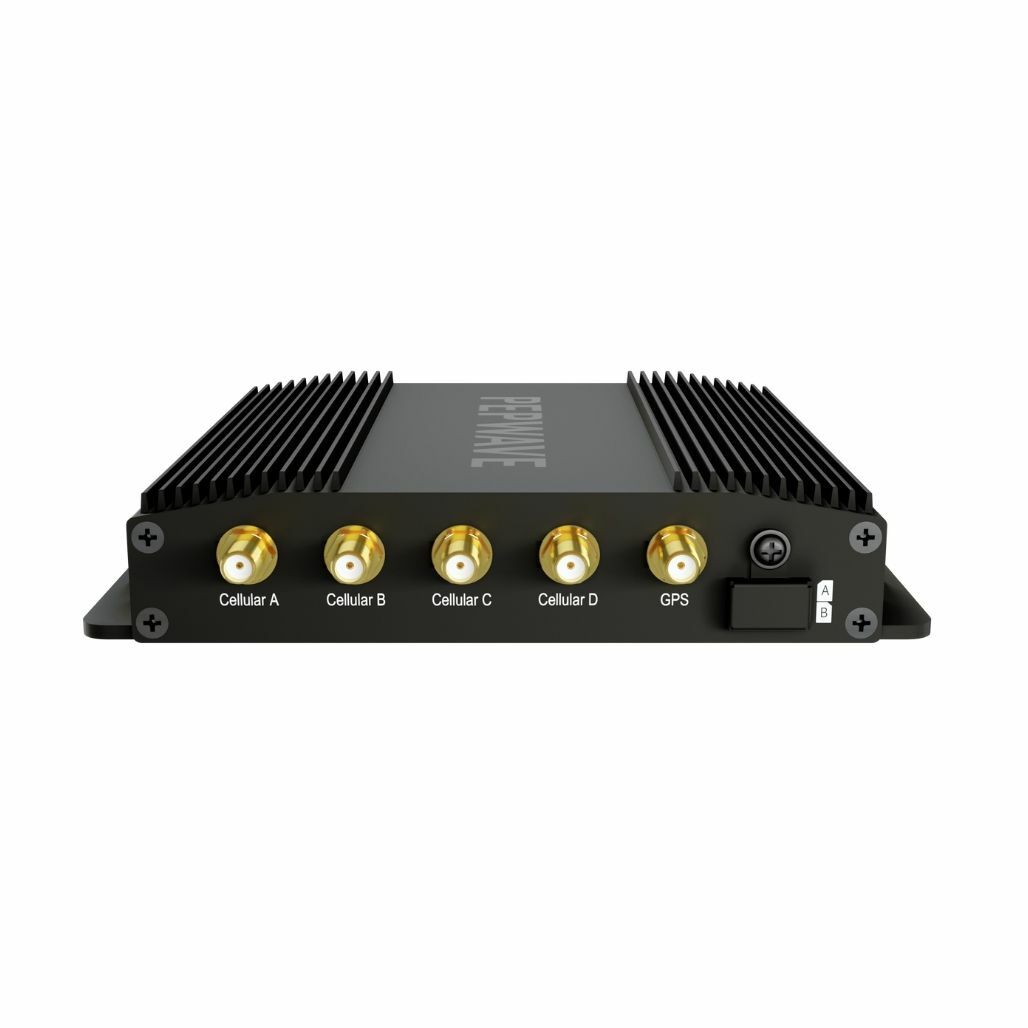

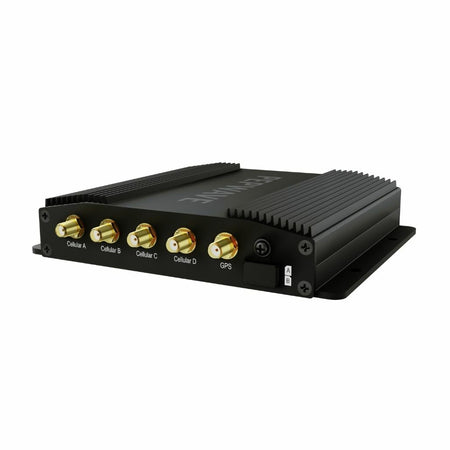

* Permanent Omnidirectional 7-in-1 Antenna (4x4 MIMO, 2 WiFi, 1 GPS): PEPWAVE MOBILITY 42G
* Temporary directional antenna (2x2 MIMO): POYNTING-A-XPOL (NOTE: The XPOL will only have 2 cellular connections so it would work to improve signal on one of the modems in your dual modem unit)

* CAT 20 SINGLE CELLULAR MODEM: The Max BR1 Pro 5G has a single 5G cellular modem that also supports Cat 20 4G LTE-A. This means you can only use one SIM card (cellular plan) at a time to access the internet.
* DUAL SIM CARD SLOTS: Multiple SIM cards allow for the redundancy often needed to stay connected while on the road. You can also set limits and rules for when you want to use one cell plan over the other which is a great feature when you are trying to conserve one plan and only use it as a backup. You are not using both cell plans at the same time with this router.
* WIFI AS WAN CAPABILITIES: The Max BR1 Pro 5G has WiFi as WAN capabilities which means you can use it to access campground WiFi using 2.4 GHz and 5 GHz
* SUPPORTS ALL MAJOR CARRIERS: US Carriers - AT&T, T-Mobile, Sprint, Verizon, and US Cellular; International Carriers - Rogers, TELUS, and Bell
* SUPPORTS CARRIER AGGREGATION: The Cat 20 router has the ability to connect to up to 8 cellular bands (from the same plan) at the same time, though realistically you may only see a max of 4 bands being used at one time. By combining more than one cellular band together, it is possible to increase the bandwidth available. With the Max BR1 Pro 5G, you can choose which primary band you want to use (the tower selects the second), which allows you to avoid the crowded primary band used by phones and hotspots. To see the bands supported by the Max BR1 Pro 5G, see the Specs.
* INCREASED THROUGHPUT AND SPEEDS: Because of Carrier Aggregation, the Max BR1 Pro 5G has higher throughput and speeds than your traditional cellular router or hotspot. The Max BR1 Pro 5G has theoretical speeds of 5G - 4 Gbps download and 700 Mbps upload; LTE CAT-20:- 2 Gbps download and 150 Mbps upload
